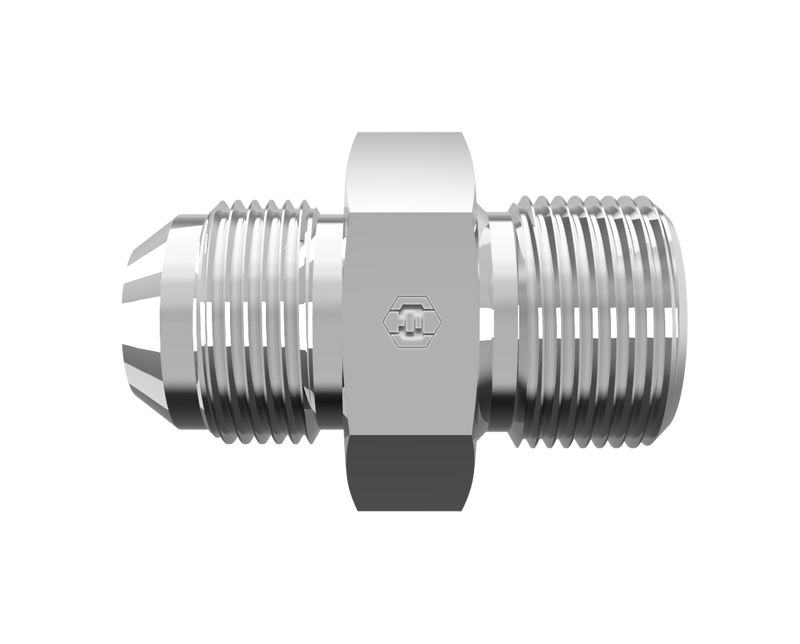

7002 series product image

BSP Fittings · 7002 family

7002-05-02

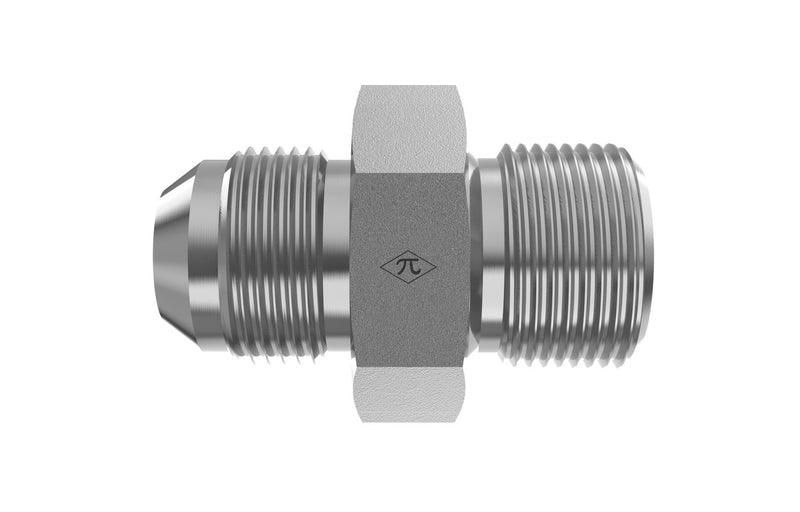

7002-05-02 - 5/16" Male JIC x 1/8" Male BSPP

$7.53 per pieceIn stock
Material
Steel
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
  • Ships from U.S. stock where available
  • Dimensional specs verified against SAE / ISO standards
  • Purchase orders accepted from qualified accounts
MaterialSteel

7002-05-02 is a 5/16" Male JIC x 1/8" Male BSPP in the 7002 Series. 7002 mates a male JIC 37° flare tube end with a male BSPP parallel port end in a straight adapter, sealing at the port face for ISO 1179 connections.

Specifications

Part Number7002-05-02
Series7002
MaterialSteel
CategoryBSP Fittings
Stock StatusIn stock
Same family

Other sizes and materials in 7002

View all 67
Part Number Side 1Side 2MaterialPlatingPrice Stock
7002-03-02 3/16" Male JIC1/8" Male BSPPSteelTrivalent Zinc$15.58 In stock View
7002-03-04 3/16" Male JIC1/4" Male BSPPSteelTrivalent Zinc$9.07 In stock View
7002-04-02 1/4" Male JIC1/8" Male BSPPSteelTrivalent Zinc$7.53 In stock View
7002-04-04 1/4" Male JIC1/4" Male BSPPSteelTrivalent Zinc$7.42 In stock View
7002-04-06 1/4" Male JIC3/8" Male BSPPSteelTrivalent Zinc$9.28 In stock View
7002-04-08 1/4" Male JIC1/2" Male BSPPSteelTrivalent Zinc$12.29 In stock View
7002-04-12 1/4" Male JIC3/4" Male BSPPSteelTrivalent Zinc$13.30 In stock View
7002-05-04 5/16" Male JIC1/4" Male BSPPSteelTrivalent Zinc$5.39 In stock View
