JIC 37° Flare Fittings · 7008 family

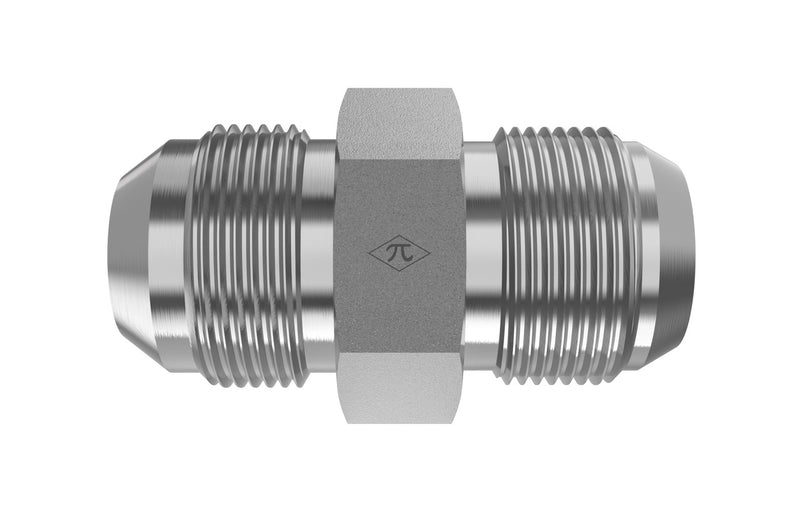

7008-04-04-SS
1/4" Male JIC x 1/4" Male JIS · Straight
$8.09
per pieceIn stock
- Side 1
- 1/4" Male JIC
- Side 2
- 1/4" Male JIS
- Material
- Stainless Steel
- Plating
- Passivated
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/4" Male JIC
Side 21/4" Male JIS
Thread Type7/16-20 UNF
Tube OD1/4"
MaterialStainless Steel
Plating / FinishPassivated
ConfigurationStraight
StandardSAE J514 / JIS B 0202

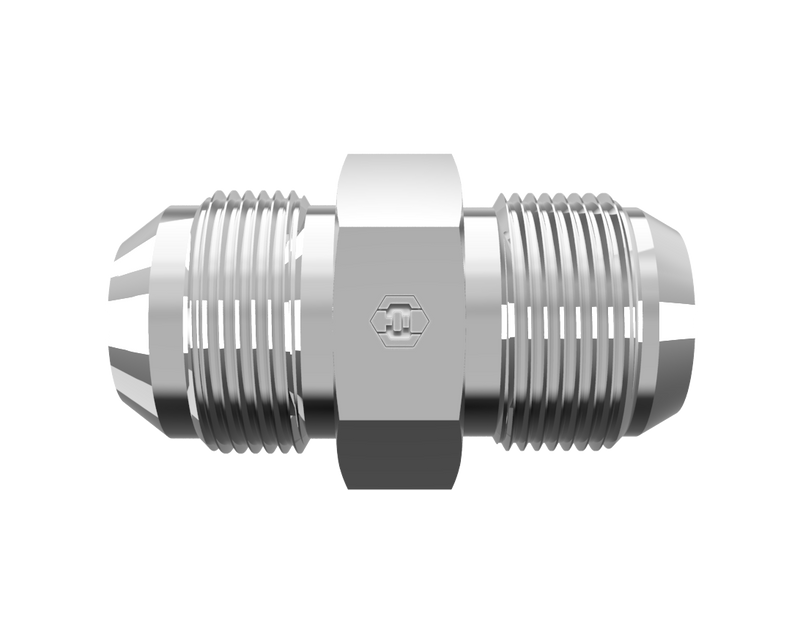

7008-04-04-SS is a 1/4" Male JIC x 1/4" Male JIS in the 7008 Series. 7008 adapts a male JIC 37° flare tube end to a male JIS tube end for straight cross-standard line connections.
Specifications
| Part Number | 7008-04-04-SS |
|---|---|
| Series | 7008 |
| Product Type | Straight |
| Side 1 Connection | 1/4" Male JIC |
| Side 2 Connection | 1/4" Male JIS |
| Tube OD | 1/4" |
| Thread Type (Side 1) | 7/16-20 UNF |
| Thread Type (Side 2) | 7/16-20 UNF |
| Material | Stainless Steel |
| Finish / Plating | Passivated |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | JIS B 0202 |
| Weight | 0.08 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/4" Male JIC
- Thread7/16-20 UNF
- Tube OD1/4"
- StandardSAE J514 - Class 2A Thread
Side 2
1/4" Male JIS
- Thread7/16-20 UNF
- StandardJIS B 0202
Construction
- MaterialStainless Steel
- PlatingPassivated
- ConfigurationStraight
- Weight0.08 lb
Product Family
CategoryJIC 37° Flare Fittings
Family7008
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Parker (Triple-Lok / TFD) | 4 XHT4-SS | 7008-04-04-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
