JIC 37° Flare Fittings · Mobile Equipment Type family
7009-04-14

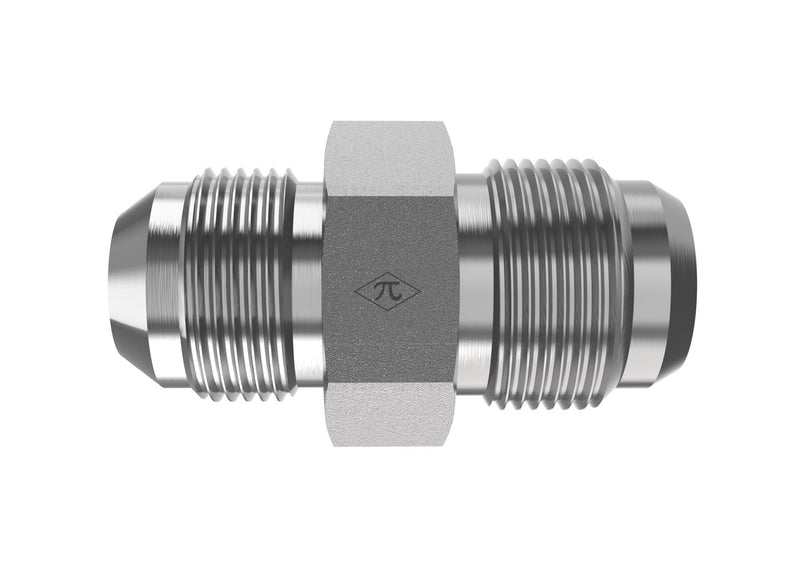

1/4" Male JIC x 7/8" Male Komatsu · Straight
$3.47
per pieceIn stock
- Side 1
- 1/4" Male JIC
- Side 2
- 7/8" Male Komatsu
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/4" Male JIC
Side 27/8" Male Komatsu
Thread Type7/16-20 UNF
Tube OD1/4"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationStraight
StandardSAE J514 / Komatsu Metric
7009-04-14 is a 1/4" Male JIC x 7/8" Male Komatsu in the 7009 Series. 7009 connects a male JIC tube end to a male Komatsu metric tube adapter for SAE J514 to Komatsu equipment transitions.
Specifications
| Part Number | 7009-04-14 |
|---|---|
| Series | Mobile Equipment Type |
| Product Type | Straight |
| Side 1 Connection | 1/4" Male JIC |
| Side 2 Connection | 7/8" Male Komatsu |
| Tube OD | 1/4" |
| Thread Type (Side 1) | 7/16-20 UNF |
| Thread Type (Side 2) | 7/16-20 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | Komatsu Metric |
| Weight | 0.07 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/4" Male JIC
- Thread7/16-20 UNF
- Tube OD1/4"
- StandardSAE J514 - Class 2A Thread
Side 2
7/8" Male Komatsu
- Thread7/16-20 UNF
- StandardKomatsu Metric
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationStraight
- Weight0.07 lb
Product Family
CategoryJIC 37° Flare Fittings
FamilyMobile Equipment Type
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Parker (Triple-Lok / TFD) | 4-4XHMKAS | 7009-04-14 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
