JIC 37° Flare Fittings · 0302 family
0302-04-SS

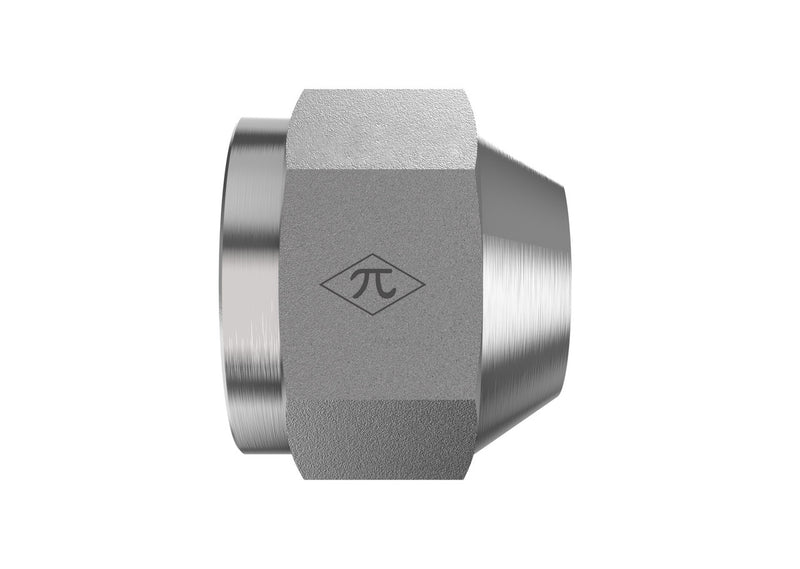

1/4" JIC Tube Nut · Nut, Compact
$61.32
per pieceIn stock
- Side 1
- 1/4" JIC Tube Nut
- Material
- Stainless Steel
- Thread
- 7/16-20 UNF
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/4" JIC Tube Nut
Thread Type7/16-20 UNF
Tube OD1/4"
MaterialStainless Steel
ConfigurationNut, Compact
StandardSAE J514
0302-04-SS is a 1/4" JIC Tube Nut in the 0302 Series. 0302 is a short-pattern JIC tube nut that pulls a 37° flare sleeve and tube against the mating male flare seat when the assembly is torqued down.
Specifications
| Part Number | 0302-04-SS |
|---|---|
| Series | 0302 |
| Product Type | Nut, Compact |
| Side 1 Connection | 1/4" JIC Tube Nut |
| Tube OD | 1/4" |
| Thread Type (Side 1) | 7/16-20 UNF |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 |
| Weight | 0.02 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/4" JIC Tube Nut
- Thread7/16-20 UNF
- Tube OD1/4"
- StandardSAE J514
Construction
- MaterialStainless Steel
- ConfigurationNut, Compact
- Weight0.02 lb
Product Family
CategoryJIC 37° Flare Fittings
Family0302
