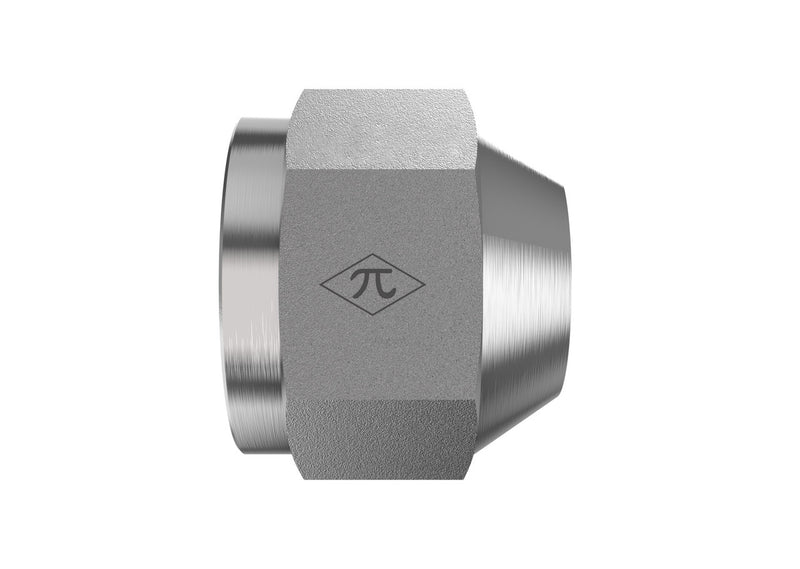

0302-10 - 5/8" JIC Tube Nut

JIC 37° Flare Fittings · 0302 family

0302-10

5/8" JIC Tube Nut · Short Nut

$2.88 per pieceIn stock
Side 1
5/8" JIC Tube Nut
Material
Steel
Plating
Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
  • Ships from U.S. stock where available
  • Dimensional specs verified against SAE / ISO standards
  • Purchase orders accepted from qualified accounts
Side 15/8" JIC Tube Nut
Thread Type7/8-14 UNF
Tube OD5/8"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationShort Nut
StandardSAE J514

0302-10 is a 5/8" JIC Tube Nut in the 0302 Series. SAE J514 37° Flare Tube Short Nut.

Specifications

Part Number0302-10
Series0302
Product TypeShort Nut
Side 1 Connection5/8" JIC Tube Nut
Tube OD5/8"
Thread Type (Side 1)7/8-14 UNF
MaterialSteel
Finish / PlatingTrivalent Zinc
Standard (Side 1)SAE J514
Weight0.08 lb
CategoryJIC 37° Flare Fittings
Stock StatusIn stock

Connection Details

Side 1 5/8" JIC Tube Nut
  • Thread7/8-14 UNF
  • Tube OD5/8"
  • StandardSAE J514
Construction
  • MaterialSteel
  • PlatingTrivalent Zinc
  • ConfigurationShort Nut
  • Weight0.08 lb
Same family

Other sizes and materials in 0302

View all 19
Part Number ConnectionMaterialPlatingPrice Stock
0302-04 1/4" JIC Tube NutSteelTrivalent Zinc$1.01 In stock View
0302-04-B 1/4" JIC Tube NutBrassNatural Finish$2.56 In stock View
0302-04-SS 1/4" JIC Tube NutStainless Steel—$17.52 In stock View
0302-05 5/16" JIC Tube NutSteelTrivalent Zinc$1.29 In stock View
0302-06 3/8" JIC Tube NutSteelTrivalent Zinc$1.03 In stock View
0302-06-SS 3/8" JIC Tube NutStainless Steel—$19.04 In stock View
0302-08 1/2" JIC Tube NutSteelTrivalent Zinc$1.26 In stock View
0302-08-SS 1/2" JIC Tube NutStainless Steel—$20.94 In stock View
