JIC 37° Flare Fittings · 0302 family
0302-16

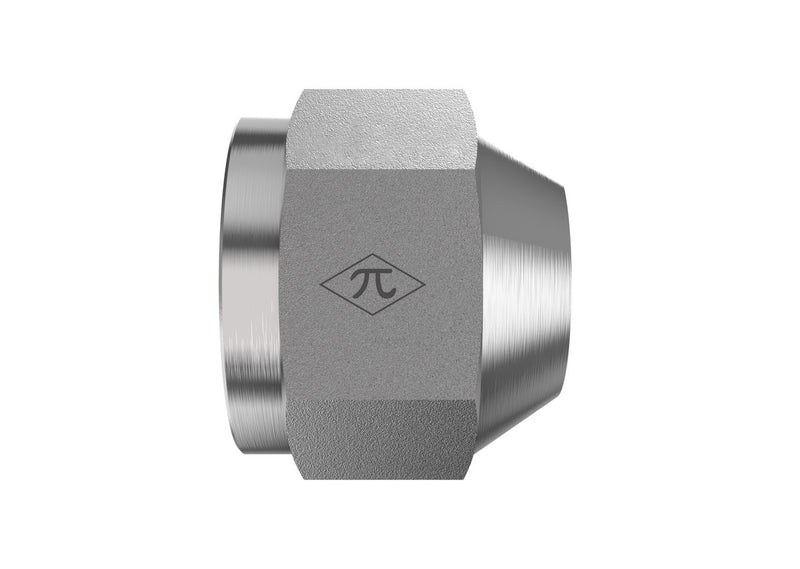

1" JIC Tube Nut · Short Nut
$4.55
per pieceIn stock
- Side 1
- 1" JIC Tube Nut
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11" JIC Tube Nut
Thread Type1-5/16-12 UN
Tube OD1"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationShort Nut
StandardSAE J514
0302-16 is a 1" JIC Tube Nut in the 0302 Series. SAE J514 37° Flare Tube Short Nut.
Specifications
| Part Number | 0302-16 |
|---|---|
| Series | 0302 |
| Product Type | Short Nut |
| Side 1 Connection | 1" JIC Tube Nut |
| Tube OD | 1" |
| Thread Type (Side 1) | 1-5/16-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 |
| Weight | 0.25 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1" JIC Tube Nut
- Thread1-5/16-12 UN
- Tube OD1"
- StandardSAE J514
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationShort Nut
- Weight0.25 lb
Product Family
CategoryJIC 37° Flare Fittings
Family0302
