2404-L

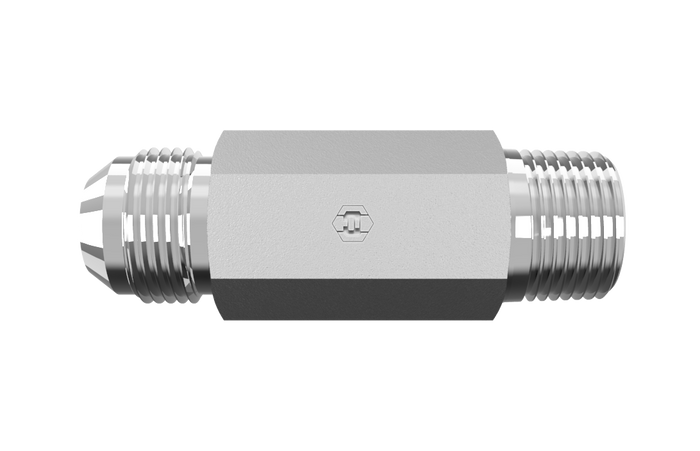

2404-L extends a male JIC 37° flare tube end to a male NPTF pipe end in a straight adapter with a long drop that reaches past nearby obstructions.
- Shape
- Straight Connector
- Side 1
- Male JIC
- Side 2
- Male NPTF 30°
- Standard
- SAE J514 - Class 2A Thread / SAE J476
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 19 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 2404-L-04-02 | 1/4" Male JIC | 1/8" Male NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $15.02 | In stock | View |
| 2404-L-04-04 | 1/4" Male JIC | 1/4" Male NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $16.17 | In stock | View |
| 2404-L-05-02 | 5/16" Male JIC | 1/8" Male NPTF 30° | 1/2-20 UNF | Steel | Trivalent Zinc | $29.12 | In stock | View |
| 2404-L-05-04 | 5/16" Male JIC | 1/4" Male NPTF 30° | 1/2-20 UNF | Steel | Trivalent Zinc | $35.00 | In stock | View |
| 2404-L-06-02 | 3/8" Male JIC | 1/8" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $26.60 | In stock | View |
| 2404-L-06-04 | 3/8" Male JIC | 1/4" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $26.88 | In stock | View |
| 2404-L-06-06 | 3/8" Male JIC | 3/8" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $24.19 | In stock | View |
| 2404-L-06-08 | 3/8" Male JIC | 1/2" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $28.46 | In stock | View |
| 2404-L-08-04 | 1/2" Male JIC | 1/4" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $26.64 | In stock | View |
| 2404-L-08-06 | 1/2" Male JIC | 3/8" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $36.02 | In stock | View |
| 2404-L-08-08 | 1/2" Male JIC | 1/2" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $38.89 | In stock | View |
| 2404-L-10-06 | 5/8" Male JIC | 3/8" Male NPTF 30° | 7/8-14 UNF | Steel | Trivalent Zinc | $24.08 | In stock | View |
| 2404-L-10-08 | 5/8" Male JIC | 1/2" Male NPTF 30° | 7/8-14 UNF | Steel | Trivalent Zinc | $27.20 | In stock | View |
| 2404-L-12-12 | 3/4" Male JIC | 3/4" Male NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $39.69 | In stock | View |
| 2404-L-16-12 | 1" Male JIC | 3/4" Male NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $35.32 | In stock | View |
| 2404-L-16-16 | 1" Male JIC | 1" Male NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $64.37 | In stock | View |
| 2404-L-20-20 | 1-1/4" Male JIC | 1-1/4" Male NPTF 30° | 1-5/8-12 UN | Steel | Trivalent Zinc | $88.83 | In stock | View |
| 2404-L-24-24 | 1-1/2" Male JIC | 1-1/2" Male NPTF 30° | 1-7/8-12 UN | Steel | Trivalent Zinc | $249.94 | In stock | View |
| 2404-L-32-32 | 2" Male JIC | 2" Male NPTF 30° | 2-1/2-12 UN | Steel | Trivalent Zinc | $805.00 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
