JIC 37° Flare Fittings · 2404-L family

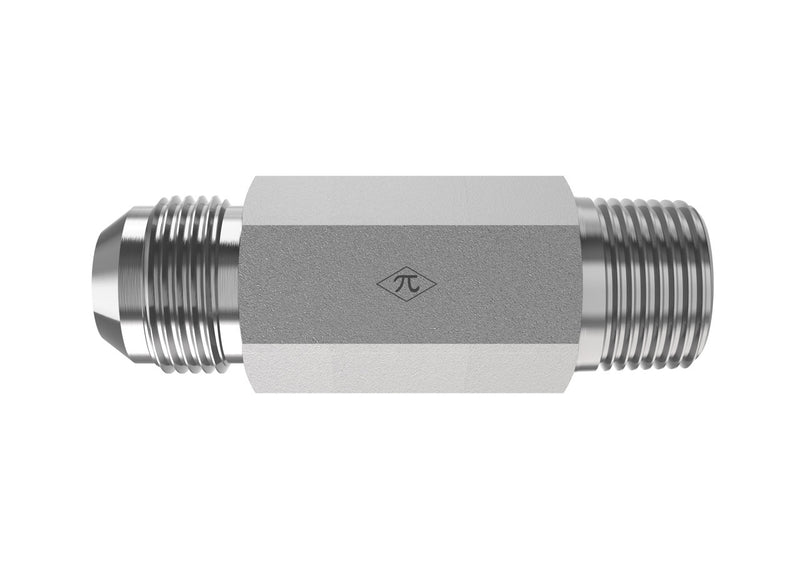

2404-L-20-20
1-1/4" Male JIC x 1-1/4" Male NPTF 30° · Connector
$25.38
per pieceIn stock
- Side 1
- 1-1/4" Male JIC
- Side 2
- 1-1/4" Male NPTF 30°
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11-1/4" Male JIC
Side 21-1/4" Male NPTF 30°
Thread Type1-5/8-12 UN
Tube OD1-1/4"
Pipe Size1-1/4"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationConnector
StandardSAE J514 / SAE J476

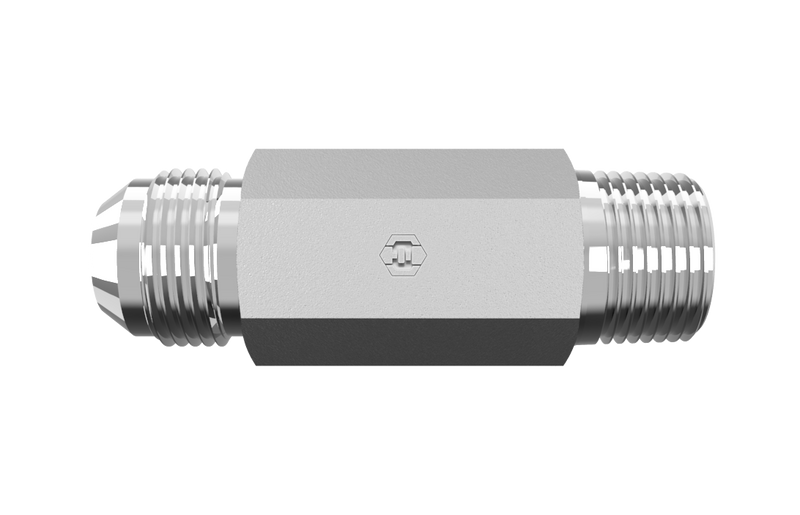

2404-L-20-20 is a 1-1/4" Male JIC x 1-1/4" Male NPTF 30° in the 2404-L Series. For long connections of 37° flared tubes or lines to pipe without requiring pipe sealant.
Specifications
| Part Number | 2404-L-20-20 |
|---|---|
| Series | 2404-L |
| Product Type | Connector |
| Side 1 Connection | 1-1/4" Male JIC |
| Side 2 Connection | 1-1/4" Male NPTF 30° |
| Tube OD | 1-1/4" |
| Pipe Size (Side 2) | 1-1/4" |
| Thread Type (Side 1) | 1-5/8-12 UN |
| Thread Type (Side 2) | 1-5/8-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J476 |
| Weight | 1.47 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1-1/4" Male JIC
- Thread1-5/8-12 UN
- Tube OD1-1/4"
- StandardSAE J514 - Class 2A Thread
Side 2
1-1/4" Male NPTF 30°
- Thread1-5/8-12 UN
- Pipe Size1-1/4"
- StandardSAE J476
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationConnector
- Weight1.47 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2404-L
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 202113-20-20S | 2404-L-20-20 |
| Parker (Triple-Lok / TFD) | 20 FFTX-S | 2404-L-20-20 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
