2500-FG

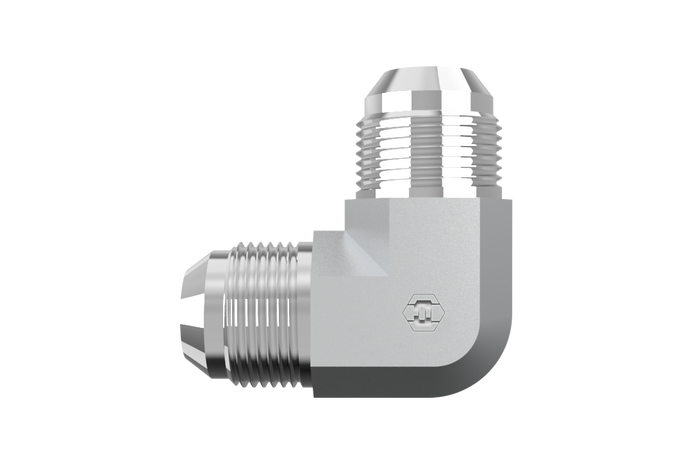

2500-FG bends a male JIC 37° flare tube end around to a second male JIC flare tube end in a 90-degree elbow forged from a single piece of bar.
- Shape
- Union Elbow
- Side 1
- Male JIC
- Side 2
- Male JIC
- Standard
- SAE J514 - Class 2A Thread
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 25 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 2500-02-02-FG | 1/8" Male JIC | 1/8" Male JIC | 5/16-24 UNF | Steel | Trivalent Zinc | $19.01 | In stock | View |
| 2500-03-03-FG | 3/16" Male JIC | 3/16" Male JIC | 3/8-24 UNF | Steel | Trivalent Zinc | $12.60 | In stock | View |
| 2500-04-04-FG | 1/4" Male JIC | 1/4" Male JIC | 7/16-20 UNF | Steel | Trivalent Zinc | $4.90 | In stock | View |
| 2500-05-04-FG | 5/16" Male JIC | 1/4" Male JIC | 1/2-20 UNF | Steel | Trivalent Zinc | $8.12 | In stock | View |
| 2500-05-05-FG | 5/16" Male JIC | 5/16" Male JIC | 1/2-20 UNF | Steel | Trivalent Zinc | $9.73 | In stock | View |
| 2500-06-04-FG | 3/8" Male JIC | 1/4" Male JIC | 9/16-18 UNF | Steel | Trivalent Zinc | $8.82 | In stock | View |
| 2500-06-05-FG | 3/8" Male JIC | 5/16" Male JIC | 9/16-18 UNF | Steel | Trivalent Zinc | $8.09 | In stock | View |
| 2500-06-06-FG | 3/8" Male JIC | 3/8" Male JIC | 9/16-18 UNF | Steel | Trivalent Zinc | $5.60 | In stock | View |
| 2500-08-04-FG | 1/2" Male JIC | 1/4" Male JIC | 3/4-16 UNF | Steel | Trivalent Zinc | $21.39 | In stock | View |
| 2500-08-06-FG | 1/2" Male JIC | 3/8" Male JIC | 3/4-16 UNF | Steel | Trivalent Zinc | $14.18 | In stock | View |
| 2500-08-08-FG | 1/2" Male JIC | 1/2" Male JIC | 3/4-16 UNF | Steel | Trivalent Zinc | $8.82 | In stock | View |
| 2500-10-08-FG | 5/8" Male JIC | 1/2" Male JIC | 7/8-14 UNF | Steel | Trivalent Zinc | $27.62 | In stock | View |
| 2500-10-10-FG | 5/8" Male JIC | 5/8" Male JIC | 7/8-14 UNF | Steel | Trivalent Zinc | $11.94 | In stock | View |
| 2500-10-12-FG | 5/8" Male JIC | 3/4" Male JIC | 7/8-14 UNF | Steel | Trivalent Zinc | $20.02 | In stock | View |
| 2500-12-08-FG | 3/4" Male JIC | 1/2" Male JIC | 1-1/16-12 UN | Steel | Trivalent Zinc | $22.93 | In stock | View |
| 2500-12-10-FG | 3/4" Male JIC | 5/8" Male JIC | 1-1/16-12 UN | Steel | Trivalent Zinc | $28.77 | In stock | View |
| 2500-12-12-FG | 3/4" Male JIC | 3/4" Male JIC | 1-1/16-12 UN | Steel | Trivalent Zinc | $16.97 | In stock | View |
| 2500-14-14-FG | 7/8" Male JIC | 7/8" Male JIC | 1-3/16-12 UN | Steel | Trivalent Zinc | $48.79 | In stock | View |
| 2500-16-12-FG | 1" Male JIC | 3/4" Male JIC | 1-5/16-12 UN | Steel | Trivalent Zinc | $42.81 | In stock | View |
| 2500-16-16-FG | 1" Male JIC | 1" Male JIC | 1-5/16-12 UN | Steel | Trivalent Zinc | $27.33 | In stock | View |
| 2500-20-16-FG | 1-1/4" Male JIC | 1" Male JIC | 1-5/8-12 UN | Steel | Trivalent Zinc | $78.02 | In stock | View |
| 2500-20-20-FG | 1-1/4" Male JIC | 1-1/4" Male JIC | 1-5/8-12 UN | Steel | Trivalent Zinc | $55.83 | In stock | View |
| 2500-24-20-FG | 1-1/2" Male JIC | 1-1/4" Male JIC | 1-7/8-12 UN | Steel | Trivalent Zinc | $133.46 | In stock | View |
| 2500-24-24-FG | 1-1/2" Male JIC | 1-1/2" Male JIC | 1-7/8-12 UN | Steel | Trivalent Zinc | $86.80 | In stock | View |
| 2500-32-32-FG | 2" Male JIC | 2" Male JIC | 2-1/2-12 UN | Steel | Trivalent Zinc | $224.42 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
