JIC 37° Flare Fittings · 2500-FG family
2500-06-05-FG

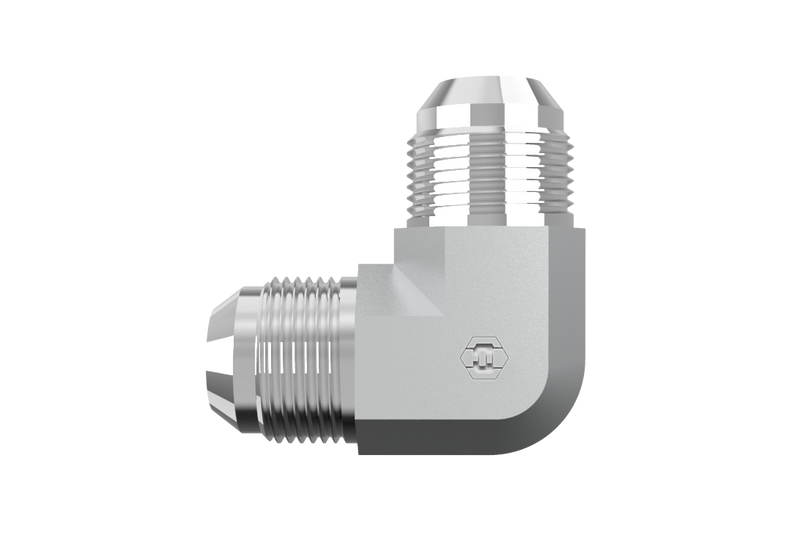

3/8" Male JIC x 5/16" Male JIC · Union Elbow
$2.31
per pieceIn stock
- Side 1
- 3/8" Male JIC
- Side 2
- 5/16" Male JIC
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/8" Male JIC
Side 25/16" Male JIC
Thread Type9/16-18 UNF
Tube OD3/8" × 5/16"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationUnion Elbow
StandardSAE J514
2500-06-05-FG is a 3/8" Male JIC x 5/16" Male JIC in the 2500-FG Series. For connecting two 37° flared tubes or lines at a 90° angle.
Specifications
| Part Number | 2500-06-05-FG |
|---|---|
| Series | 2500-FG |
| Product Type | Union Elbow |
| Side 1 Connection | 3/8" Male JIC |
| Side 2 Connection | 5/16" Male JIC |
| Tube OD (Side 1 / Side 2) | 3/8" / 5/16" |
| Thread Type (Side 1) | 9/16-18 UNF |
| Thread Type (Side 2) | 9/16-18 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.10 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/8" Male JIC
- Thread9/16-18 UNF
- Tube OD3/8"
- StandardSAE J514 - Class 2A Thread
Side 2
5/16" Male JIC
- Thread9/16-18 UNF
- Tube OD5/16"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationUnion Elbow
- Weight0.10 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2500-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2039-6-5S | 2500-06-05-FG |
| Parker (Triple-Lok / TFD) | 6-5 ETX-S | 2500-06-05-FG |
| Sae | SAE J514 6-5 070201C | 2500-06-05-FG |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
