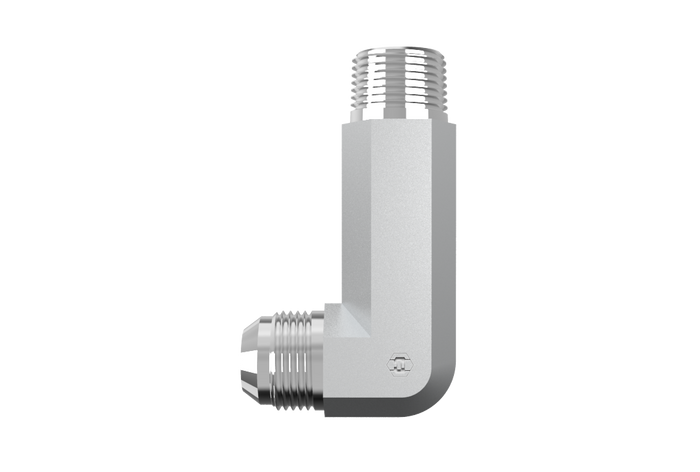

2501-LL-FG
2501-LL-FG routes a male JIC 37° flare tube end into a male NPTF pipe end through a 90-degree elbow whose extra-long drop lifts the tube farther off the mounting face.
- Shape
- Male Elbow
- Side 1
- Male JIC
- Side 2
- Male NPTF 30°
- Standard
- SAE J514 - Class 2A Thread / SAE J476
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 19 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 2501-LL-02-02-FG | 1/8" Male JIC | 1/8" Male NPTF 30° | 5/16-24 UNF | Steel | Trivalent Zinc | $9.38 | In stock | View |
| 2501-LL-04-02-FG | 1/4" Male JIC | 1/8" Male NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $12.74 | In stock | View |
| 2501-LL-04-04-FG | 1/4" Male JIC | 1/4" Male NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $11.90 | In stock | View |
| 2501-LL-05-02-FG | 5/16" Male JIC | 1/8" Male NPTF 30° | 1/2-20 UNF | Steel | Trivalent Zinc | $12.35 | In stock | View |
| 2501-LL-05-04-FG | 5/16" Male JIC | 1/4" Male NPTF 30° | 1/2-20 UNF | Steel | Trivalent Zinc | $13.41 | In stock | View |
| 2501-LL-06-04-FG | 3/8" Male JIC | 1/4" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $15.36 | In stock | View |
| 2501-LL-06-06-FG | 3/8" Male JIC | 3/8" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $19.36 | In stock | View |
| 2501-LL-06-08-FG | 3/8" Male JIC | 1/2" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $24.01 | In stock | View |
| 2501-LL-08-04-FG | 1/2" Male JIC | 1/4" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $17.92 | In stock | View |
| 2501-LL-08-06-FG | 1/2" Male JIC | 3/8" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $19.18 | In stock | View |
| 2501-LL-08-08-FG | 1/2" Male JIC | 1/2" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $18.48 | In stock | View |
| 2501-LL-10-08-FG | 5/8" Male JIC | 1/2" Male NPTF 30° | 7/8-14 UNF | Steel | Trivalent Zinc | $25.87 | In stock | View |
| 2501-LL-12-08-FG | 3/4" Male JIC | 1/2" Male NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $39.48 | In stock | View |
| 2501-LL-12-12-FG | 3/4" Male JIC | 3/4" Male NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $30.59 | In stock | View |
| 2501-LL-14-12-FG | 7/8" Male JIC | 3/4" Male NPTF 30° | 1-3/16-12 UN | Steel | Trivalent Zinc | $52.36 | In stock | View |
| 2501-LL-16-12-FG | 1" Male JIC | 3/4" Male NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $56.77 | In stock | View |
| 2501-LL-16-16-FG | 1" Male JIC | 1" Male NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $50.33 | In stock | View |
| 2501-LL-20-20-FG | 1-1/4" Male JIC | 1-1/4" Male NPTF 30° | 1-5/8-12 UN | Steel | Trivalent Zinc | $132.76 | In stock | View |
| 2501-LL-24-24-FG | 1-1/2" Male JIC | 1-1/2" Male NPTF 30° | 1-7/8-12 UN | Steel | Trivalent Zinc | $205.73 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
