JIC 37° Flare Fittings · 2501-LL-FG family

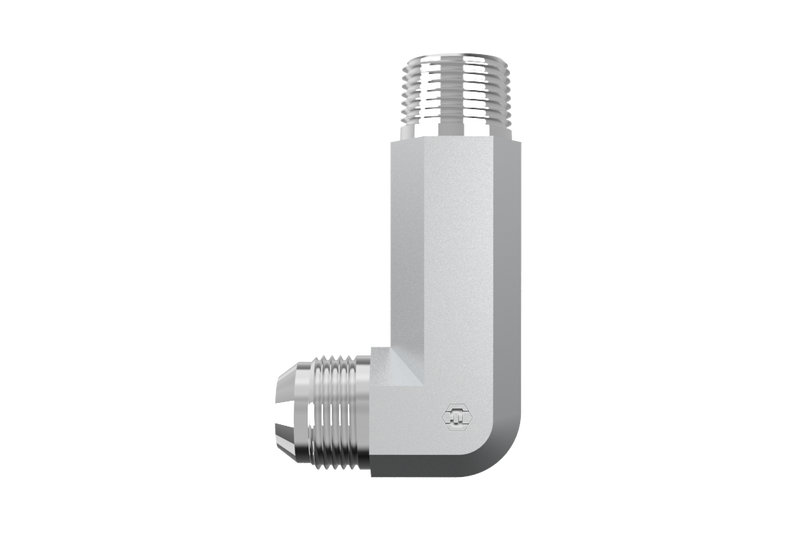

2501-LL-05-02-FG
5/16" Male JIC x 1/8" Male NPTF 30° · Male Elbow
$3.53
per pieceIn stock
- Side 1
- 5/16" Male JIC
- Side 2
- 1/8" Male NPTF 30°
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 15/16" Male JIC
Side 21/8" Male NPTF 30°
Thread Type1/2-20 UNF
Tube OD5/16"
Pipe Size1/8"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationMale Elbow
StandardSAE J514 / SAE J476
2501-LL-05-02-FG is a 5/16" Male JIC x 1/8" Male NPTF 30° in the 2501-LL-FG Series. For connecting 37° flared tubes or lines to pipe at a 90° angle, with an extra-long barrel for greater clearance from the mounting surface.
Specifications
| Part Number | 2501-LL-05-02-FG |
|---|---|
| Series | 2501-LL-FG |
| Product Type | Male Elbow |
| Side 1 Connection | 5/16" Male JIC |
| Side 2 Connection | 1/8" Male NPTF 30° |
| Tube OD | 5/16" |
| Pipe Size (Side 2) | 1/8" |
| Thread Type (Side 1) | 1/2-20 UNF |
| Thread Type (Side 2) | 1/2-20 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J476 |
| Weight | 0.13 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
5/16" Male JIC
- Thread1/2-20 UNF
- Tube OD5/16"
- StandardSAE J514 - Class 2A Thread
Side 2
1/8" Male NPTF 30°
- Thread1/2-20 UNF
- Pipe Size1/8"
- StandardSAE J476
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationMale Elbow
- Weight0.13 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2501-LL-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 202413-2-5S | 2501-LL-05-02-FG |
| Parker (Triple-Lok / TFD) | 5 CCCTX-S | 2501-LL-05-02-FG |
| Sae | SAE J514 5-2 071602C | 2501-LL-05-02-FG |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
