2504-FG

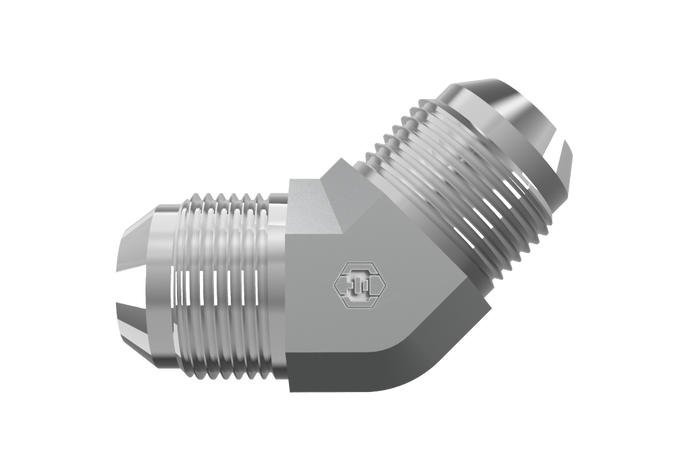

2504-FG adapts a male JIC 37° flare tube end to a female NPTF pipe end in a 45-degree elbow forged from one piece of bar stock.
- Shape
- Union Elbow
- Side 1
- Male JIC
- Side 2
- Female NPTF 30°
- Standard
- SAE J514 - Class 2A Thread / SAE J476
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 11 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 2504-03-03-FG | 3/16" Male JIC | 3/16" Female NPTF 30° | 3/8-24 UNF | Steel | Trivalent Zinc | $6.06 | In stock | View |
| 2504-04-04-FG | 1/4" Male JIC | 1/4" Female NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $27.76 | In stock | View |
| 2504-06-04-FG | 3/8" Male JIC | 1/4" Female NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $10.19 | In stock | View |
| 2504-06-06-FG | 3/8" Male JIC | 3/8" Female NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $23.73 | In stock | View |
| 2504-08-08-FG | 1/2" Male JIC | 1/2" Female NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $30.21 | In stock | View |
| 2504-10-10-FG | 5/8" Male JIC | 5/8" Female NPTF 30° | 7/8-14 UNF | Steel | Trivalent Zinc | $32.76 | In stock | View |
| 2504-12-12-FG | 3/4" Male JIC | 3/4" Female NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $40.88 | In stock | View |
| 2504-16-16-FG | 1" Male JIC | 1" Female NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $26.36 | In stock | View |
| 2504-20-20-FG | 1-1/4" Male JIC | 1-1/4" Female NPTF 30° | 1-5/8-12 UN | Steel | Trivalent Zinc | $75.57 | In stock | View |
| 2504-24-24-FG | 1-1/2" Male JIC | 1-1/2" Female NPTF 30° | 1-7/8-12 UN | Steel | Trivalent Zinc | $142.03 | In stock | View |
| 2504-32-32-FG | 2" Male JIC | 2" Female NPTF 30° | 2-1/2-12 UN | Steel | Trivalent Zinc | $258.23 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
