2505-FG

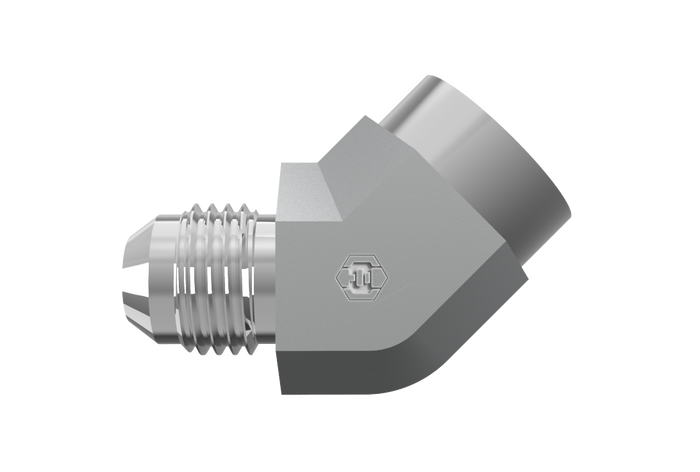

2505-FG mates a female JIC 37° swivel end with a male NPTF pipe end in a 45-degree elbow, letting the swivel nut align the port after the pipe thread is set.
- Shape
- Female Elbow
- Side 1
- Female JIC Swivel
- Side 2
- Male NPTF 30°
- Standard
- SAE J514 - Class 2B Thread / SAE J476
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 10 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 2505-04-04-FG | 1/4" Female JIC Swivel | 1/4" Male NPTF 30° | 7/16-20 UNF | Steel | Trivalent Zinc | $38.82 | In stock | View |
| 2505-06-04-FG | 3/8" Female JIC Swivel | 1/4" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $30.98 | In stock | View |
| 2505-06-06-FG | 3/8" Female JIC Swivel | 3/8" Male NPTF 30° | 9/16-18 UNF | Steel | Trivalent Zinc | $48.09 | In stock | View |
| 2505-08-06-FG | 1/2" Female JIC Swivel | 3/8" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $37.87 | In stock | View |
| 2505-08-08-FG | 1/2" Female JIC Swivel | 1/2" Male NPTF 30° | 3/4-16 UNF | Steel | Trivalent Zinc | $38.43 | In stock | View |
| 2505-10-08-FG | 5/8" Female JIC Swivel | 1/2" Male NPTF 30° | 7/8-14 UNF | Steel | Trivalent Zinc | $38.57 | In stock | View |
| 2505-12-12-FG | 3/4" Female JIC Swivel | 3/4" Male NPTF 30° | 1-1/16-12 UN | Steel | Trivalent Zinc | $42.91 | In stock | View |
| 2505-16-16-FG | 1" Female JIC Swivel | 1" Male NPTF 30° | 1-5/16-12 UN | Steel | Trivalent Zinc | $47.04 | In stock | View |
| 2505-24-24-FG | 1-1/2" Female JIC Swivel | 1-1/2" Male NPTF 30° | 1-7/8-12 UN | Steel | Trivalent Zinc | $225.93 | In stock | View |
| 2505-32-32-FG | 2" Female JIC Swivel | 2" Male NPTF 30° | 2-1/2-12 UN | Steel | Trivalent Zinc | $322.77 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
