JIC 37° Flare Fittings · 2505-FG family

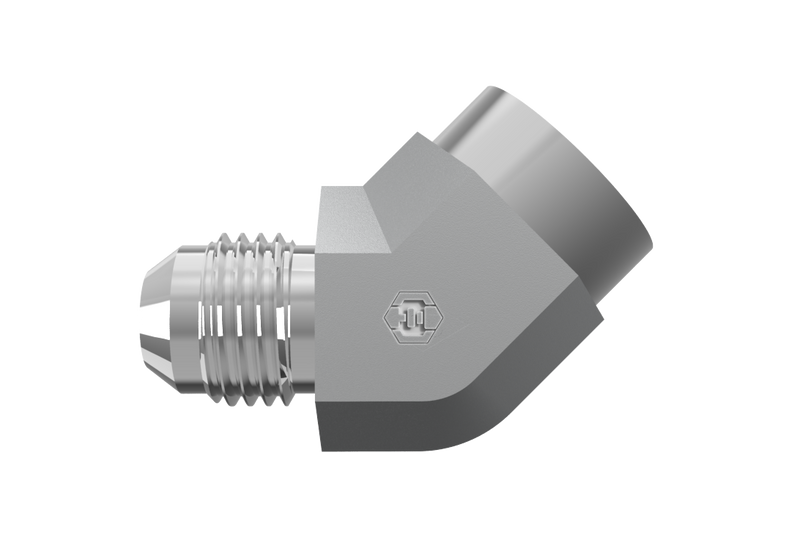

2505-24-24-FG
1-1/2" Female JIC Swivel x 1-1/2" Male NPTF 30° · Female Elbow
$64.55
per pieceIn stock
- Side 1
- 1-1/2" Female JIC Swivel
- Side 2
- 1-1/2" Male NPTF 30°
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11-1/2" Female JIC Swivel
Side 21-1/2" Male NPTF 30°
Thread Type1-7/8-12 UN
Tube OD1-1/2"
Pipe Size1-1/2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationFemale Elbow
StandardSAE J514 / SAE J476
2505-24-24-FG is a 1-1/2" Female JIC Swivel x 1-1/2" Male NPTF 30° in the 2505-FG Series. For connecting a 37° flared tube or line to a male pipe thread at a 45° angle, with the female JIC swivel allowing the elbow to be tightened without.
Specifications
| Part Number | 2505-24-24-FG |
|---|---|
| Series | 2505-FG |
| Product Type | Female Elbow |
| Side 1 Connection | 1-1/2" Female JIC Swivel |
| Side 2 Connection | 1-1/2" Male NPTF 30° |
| Tube OD | 1-1/2" |
| Pipe Size (Side 2) | 1-1/2" |
| Thread Type (Side 1) | 1-7/8-12 UN |
| Thread Type (Side 2) | 1-7/8-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2B Thread |
| Standard (Side 2) | SAE J476 |
| Weight | 1.46 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1-1/2" Female JIC Swivel
- Thread1-7/8-12 UN
- Tube OD1-1/2"
- StandardSAE J514 - Class 2B Thread
Side 2
1-1/2" Male NPTF 30°
- Thread1-7/8-12 UN
- Pipe Size1-1/2"
- StandardSAE J476
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationFemale Elbow
- Weight1.46 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2505-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2044-24-24S | 2505-24-24-FG |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
