2700

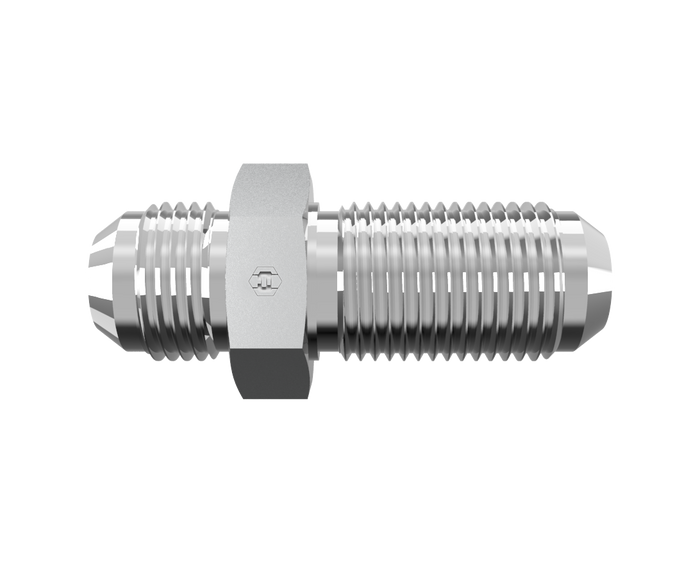

2700 carries a male JIC 37° flare tube end through a panel to a second male JIC end as a bulkhead union, with a threaded barrel for the mounting nut.
- Shape
- Bulkhead Fitting
- Side 1
- Male JIC Bulkhead
- Side 2
- Male JIC
- Standard
- SAE J514 - Class 2A Thread
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 16 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 2700-02-02 | 1/8" Male JIC Bulkhead | 1/8" Male JIC | 5/16-24 UNF | Steel | Trivalent Zinc | $6.34 | In stock | View |
| 2700-03-03 | 3/16" Male JIC Bulkhead | 3/16" Male JIC | 3/8-24 UNF | Steel | Trivalent Zinc | $7.56 | In stock | View |
| 2700-04-04 | 1/4" Male JIC Bulkhead | 1/4" Male JIC | 7/16-20 UNF | Steel | Trivalent Zinc | $5.67 | In stock | View |
| 2700-04-06 | 1/4" Male JIC Bulkhead | 3/8" Male JIC | 7/16-20 UNF | Steel | Trivalent Zinc | $9.91 | In stock | View |
| 2700-05-05 | 5/16" Male JIC Bulkhead | 5/16" Male JIC | 1/2-20 UNF | Steel | Trivalent Zinc | $7.56 | In stock | View |
| 2700-06-04 | 3/8" Male JIC Bulkhead | 1/4" Male JIC | 9/16-18 UNF | Steel | Trivalent Zinc | $9.94 | In stock | View |
| 2700-06-06 | 3/8" Male JIC Bulkhead | 3/8" Male JIC | 9/16-18 UNF | Steel | Trivalent Zinc | $4.93 | In stock | View |
| 2700-08-08 | 1/2" Male JIC Bulkhead | 1/2" Male JIC | 3/4-16 UNF | Steel | Trivalent Zinc | $6.79 | In stock | View |
| 2700-10-10 | 5/8" Male JIC Bulkhead | 5/8" Male JIC | 7/8-14 UNF | Steel | Trivalent Zinc | $9.21 | In stock | View |
| 2700-12-12 | 3/4" Male JIC Bulkhead | 3/4" Male JIC | 1-1/16-12 UN | Steel | Trivalent Zinc | $17.29 | In stock | View |
| 2700-14-14 | 7/8" Male JIC Bulkhead | 7/8" Male JIC | 1-3/16-12 UN | Steel | Trivalent Zinc | $31.99 | In stock | View |
| 2700-16-12 | 1" Male JIC Bulkhead | 3/4" Male JIC | 1-5/16-12 UN | Steel | Trivalent Zinc | $21.88 | In stock | View |
| 2700-16-16 | 1" Male JIC Bulkhead | 1" Male JIC | 1-5/16-12 UN | Steel | Trivalent Zinc | $22.65 | In stock | View |
| 2700-20-20 | 1-1/4" Male JIC Bulkhead | 1-1/4" Male JIC | 1-5/8-12 UN | Steel | Trivalent Zinc | $40.81 | In stock | View |
| 2700-24-24 | 1-1/2" Male JIC Bulkhead | 1-1/2" Male JIC | 1-7/8-12 UN | Steel | Trivalent Zinc | $49.00 | In stock | View |
| 2700-32-32 | 2" Male JIC Bulkhead | 2" Male JIC | 2-1/2-12 UN | Steel | Trivalent Zinc | $236.21 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
