JIC 37° Flare Fittings · 2700 family

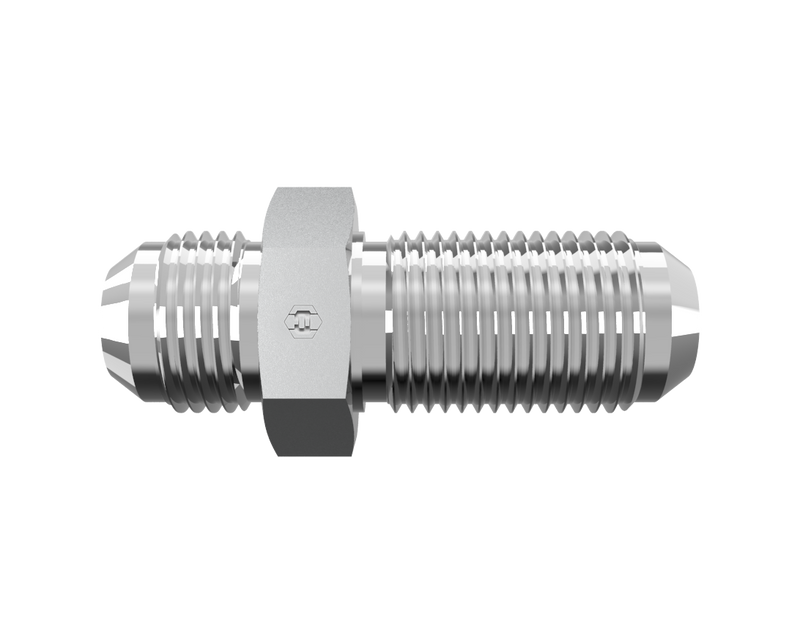

2700-14-14
7/8" Male JIC Bulkhead x 7/8" Male JIC · Bulkhead
$9.14
per pieceIn stock
- Side 1
- 7/8" Male JIC Bulkhead
- Side 2
- 7/8" Male JIC
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 17/8" Male JIC Bulkhead
Side 27/8" Male JIC
Thread Type1-3/16-12 UN
Tube OD7/8"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationBulkhead
StandardSAE J514
2700-14-14 is a 7/8" Male JIC Bulkhead x 7/8" Male JIC in the 2700 Series. For routing a 37° flared tube or line through a panel or wall in a straight configuration, secured with a bulkhead locknut.
Specifications
| Part Number | 2700-14-14 |
|---|---|
| Series | 2700 |
| Product Type | Bulkhead |
| Side 1 Connection | 7/8" Male JIC Bulkhead |
| Side 2 Connection | 7/8" Male JIC |
| Tube OD (Side 1) | 7/8" |
| Thread Type (Side 1) | 1-3/16-12 UN |
| Thread Type (Side 2) | 1-3/16-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.60 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
7/8" Male JIC Bulkhead
- Thread1-3/16-12 UN
- Tube OD7/8"
- StandardSAE J514 - Class 2A Thread
Side 2
7/8" Male JIC
- Thread1-3/16-12 UN
- Tube OD7/8"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationBulkhead
- Weight0.60 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2700
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2041-1-14-14S | 2700-14-14 |
| Parker (Triple-Lok / TFD) | 14 WTX-S | 2700-14-14 |
| Sae | SAE J514 14-14 070601C | 2700-14-14 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
