2702-FG

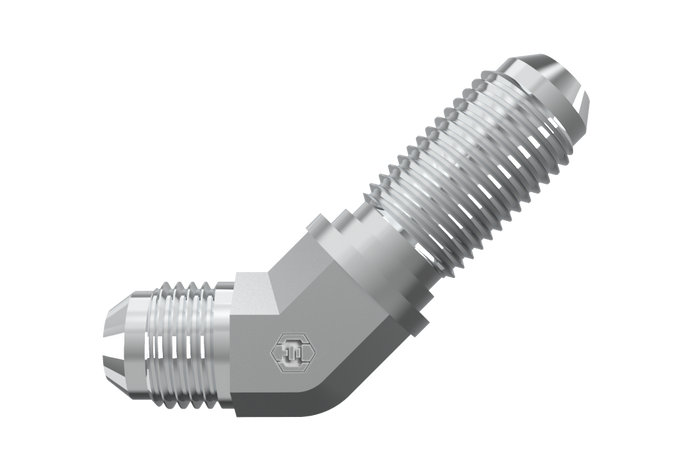

2702-FG angles a male JIC 37° flare tube end 45 degrees to a second male JIC end while its threaded barrel seats through a panel as a bulkhead mount.
- Shape
- Elbow, Bulkhead
- Side 1
- Male JIC Bulkhead
- Side 2
- Male JIC
- Standard
- SAE J514 - Class 2A Thread
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 11 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 2702-03-03-FG | 3/16" Male JIC Bulkhead | 3/16" Male JIC | 3/8-24 UNF | Steel | Trivalent Zinc | $9.31 | In stock | View |
| 2702-04-04-FG | 1/4" Male JIC Bulkhead | 1/4" Male JIC | 7/16-20 UNF | Steel | Trivalent Zinc | $6.02 | In stock | View |
| 2702-05-05-FG | 5/16" Male JIC Bulkhead | 5/16" Male JIC | 1/2-20 UNF | Steel | Trivalent Zinc | $11.17 | In stock | View |
| 2702-06-06-FG | 3/8" Male JIC Bulkhead | 3/8" Male JIC | 9/16-18 UNF | Steel | Trivalent Zinc | $8.79 | In stock | View |
| 2702-08-08-FG | 1/2" Male JIC Bulkhead | 1/2" Male JIC | 3/4-16 UNF | Steel | Trivalent Zinc | $12.78 | In stock | View |
| 2702-10-10-FG | 5/8" Male JIC Bulkhead | 5/8" Male JIC | 7/8-14 UNF | Steel | Trivalent Zinc | $16.97 | In stock | View |
| 2702-12-12-FG | 3/4" Male JIC Bulkhead | 3/4" Male JIC | 1-1/16-12 UN | Steel | Trivalent Zinc | $23.24 | In stock | View |
| 2702-16-16-FG | 1" Male JIC Bulkhead | 1" Male JIC | 1-5/16-12 UN | Steel | Trivalent Zinc | $42.14 | In stock | View |
| 2702-20-20-FG | 1-1/4" Male JIC Bulkhead | 1-1/4" Male JIC | 1-5/8-12 UN | Steel | Trivalent Zinc | $78.44 | In stock | View |
| 2702-24-24-FG | 1-1/2" Male JIC Bulkhead | 1-1/2" Male JIC | 1-7/8-12 UN | Steel | Trivalent Zinc | $115.15 | In stock | View |
| 2702-32-32-FG | 2" Male JIC Bulkhead | 2" Male JIC | 2-1/2-12 UN | Steel | Trivalent Zinc | $277.16 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
