JIC 37° Flare Fittings · 2702-FG family

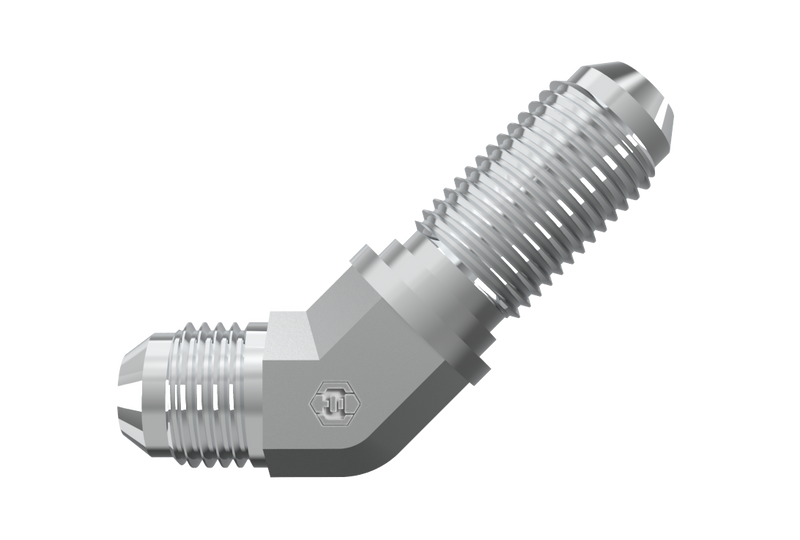

2702-04-04-FG
1/4" Male JIC Bulkhead x 1/4" Male JIC · Bulkhead Elbow
$1.72
per pieceIn stock
- Side 1
- 1/4" Male JIC Bulkhead
- Side 2
- 1/4" Male JIC
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/4" Male JIC Bulkhead
Side 21/4" Male JIC
Thread Type7/16-20 UNF
Tube OD1/4"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationBulkhead Elbow
StandardSAE J514
2702-04-04-FG is a 1/4" Male JIC Bulkhead x 1/4" Male JIC in the 2702-FG Series. For routing 37° flared tubes or lines through a panel or wall at a 45° angle, secured with a bulkhead locknut.
Specifications
| Part Number | 2702-04-04-FG |
|---|---|
| Series | 2702-FG |
| Product Type | Bulkhead Elbow |
| Side 1 Connection | 1/4" Male JIC Bulkhead |
| Side 2 Connection | 1/4" Male JIC |
| Tube OD (Side 1) | 1/4" |
| Thread Type (Side 1) | 7/16-20 UNF |
| Thread Type (Side 2) | 7/16-20 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.07 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/4" Male JIC Bulkhead
- Thread7/16-20 UNF
- Tube OD1/4"
- StandardSAE J514 - Class 2A Thread
Side 2
1/4" Male JIC
- Thread7/16-20 UNF
- Tube OD1/4"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationBulkhead Elbow
- Weight0.07 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2702-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2042-1-4-4S | 2702-04-04-FG |
| Parker (Triple-Lok / TFD) | 4 WNTX-S | 2702-04-04-FG |
| Sae | SAE J514 4-4 070801C | 2702-04-04-FG |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
