2705

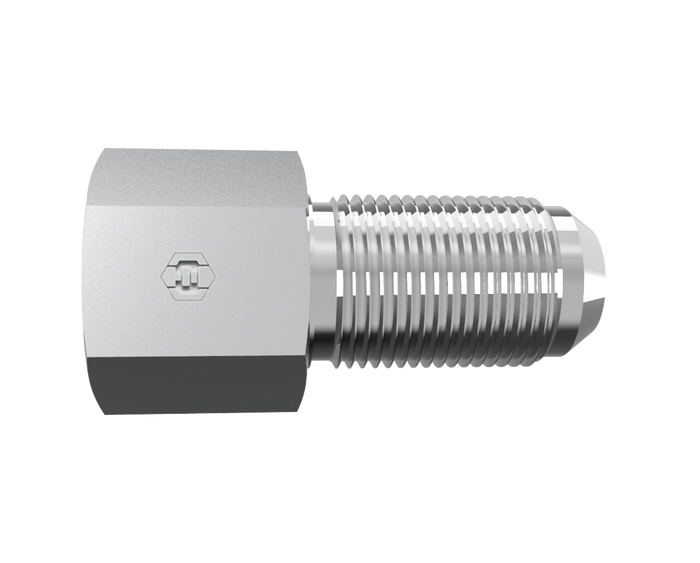

2705 adapts a female NPTF pipe end to a male JIC 37° flare tube end as a straight bulkhead union, with the threaded barrel taking a panel-mounting nut.
- Shape
- Bulkhead, Female
- Side 1
- Female NPTF 30°
- Side 2
- Male JIC
- Standard
- SAE J476 / SAE J514 - Class 2A Thread
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 19 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 2705-02-04 | 1/8" Female NPTF 30° | 1/4" Male JIC | 1/8-27 NPTF | Steel | Trivalent Zinc | $8.12 | In stock | View |
| 2705-02-05 | 1/8" Female NPTF 30° | 5/16" Male JIC | 1/8-27 NPTF | Steel | Trivalent Zinc | $45.19 | In stock | View |
| 2705-04-02 | 1/4" Female NPTF 30° | 1/8" Male JIC | 1/4-18 NPTF | Steel | Trivalent Zinc | $8.23 | In stock | View |
| 2705-04-04 | 1/4" Female NPTF 30° | 1/4" Male JIC | 1/4-18 NPTF | Steel | Trivalent Zinc | $8.33 | In stock | View |
| 2705-04-05 | 1/4" Female NPTF 30° | 5/16" Male JIC | 1/4-18 NPTF | Steel | Trivalent Zinc | $51.66 | In stock | View |
| 2705-04-06 | 1/4" Female NPTF 30° | 3/8" Male JIC | 1/4-18 NPTF | Steel | Trivalent Zinc | $9.63 | In stock | View |
| 2705-06-04 | 3/8" Female NPTF 30° | 1/4" Male JIC | 3/8-18 NPTF | Steel | Trivalent Zinc | $10.64 | In stock | View |
| 2705-06-06 | 3/8" Female NPTF 30° | 3/8" Male JIC | 3/8-18 NPTF | Steel | Trivalent Zinc | $12.57 | In stock | View |
| 2705-06-08 | 3/8" Female NPTF 30° | 1/2" Male JIC | 3/8-18 NPTF | Steel | Trivalent Zinc | $13.06 | In stock | View |
| 2705-08-06 | 1/2" Female NPTF 30° | 3/8" Male JIC | 1/2-14 NPTF | Steel | Trivalent Zinc | $14.21 | In stock | View |
| 2705-08-08 | 1/2" Female NPTF 30° | 1/2" Male JIC | 1/2-14 NPTF | Steel | Trivalent Zinc | $16.94 | In stock | View |
| 2705-08-10 | 1/2" Female NPTF 30° | 5/8" Male JIC | 1/2-14 NPTF | Steel | Trivalent Zinc | $19.92 | In stock | View |
| 2705-12-06 | 3/4" Female NPTF 30° | 3/8" Male JIC | 3/4-14 NPTF | Steel | Trivalent Zinc | $27.13 | In stock | View |
| 2705-12-12 | 3/4" Female NPTF 30° | 3/4" Male JIC | 3/4-14 NPTF | Steel | Trivalent Zinc | $26.43 | In stock | View |
| 2705-12-14 | 3/4" Female NPTF 30° | 7/8" Male JIC | 3/4-14 NPTF | Steel | Trivalent Zinc | $98.25 | In stock | View |
| 2705-16-16 | 1" Female NPTF 30° | 1" Male JIC | 1-11-1/2 NPTF | Steel | Trivalent Zinc | $37.42 | In stock | View |
| 2705-20-20 | 1-1/4" Female NPTF 30° | 1-1/4" Male JIC | 1-1/4-11-1/2 NPTF | Steel | Trivalent Zinc | $68.21 | In stock | View |
| 2705-24-24 | 1-1/2" Female NPTF 30° | 1-1/2" Male JIC | 1-1/2-11-1/2 NPTF | Steel | Trivalent Zinc | $78.16 | In stock | View |
| 2705-32-32 | 2" Female NPTF 30° | 2" Male JIC | 2-11-1/2 NPTF | Steel | Trivalent Zinc | $284.27 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
