JIC 37° Flare Fittings · 2705 family

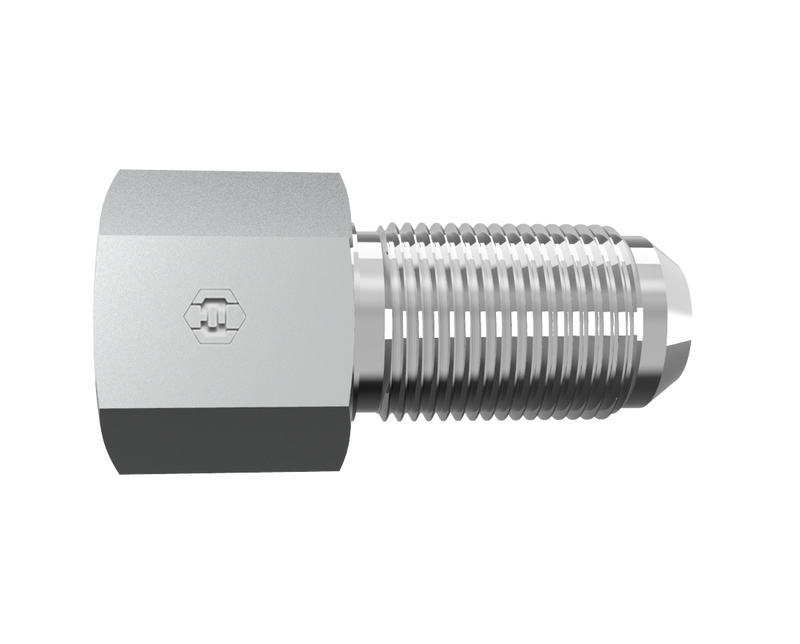

2705-08-08
1/2" Female NPTF 30° x 1/2" Male JIC · Female Bulkhead
$4.84
per pieceIn stock
- Side 1
- 1/2" Female NPTF 30°
- Side 2
- 1/2" Male JIC
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/2" Female NPTF 30°
Side 21/2" Male JIC
Thread Type1/2-14 NPTF
Pipe Size1/2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationFemale Bulkhead
StandardSAE J476 / SAE J514
2705-08-08 is a 1/2" Female NPTF 30° x 1/2" Male JIC in the 2705 Series. For connecting a male pipe thread through a panel or wall to a 37° flared tube or line in a straight configuration.
Specifications
| Part Number | 2705-08-08 |
|---|---|
| Series | 2705 |
| Product Type | Female Bulkhead |
| Side 1 Connection | 1/2" Female NPTF 30° |
| Side 2 Connection | 1/2" Male JIC |
| Pipe Size (Side 1) | 1/2" |
| Thread Type (Side 1) | 1/2-14 NPTF |
| Thread Type (Side 2) | 1/2-14 NPTF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J476 |
| Standard (Side 2) | SAE J514 - Class 2A Thread |
| Weight | 0.35 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/2" Female NPTF 30°
- Thread1/2-14 NPTF
- Pipe Size1/2"
- StandardSAE J476
Side 2
1/2" Male JIC
- Thread1/2-14 NPTF
- Tube OD1/2"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationFemale Bulkhead
- Weight0.35 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2705
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2239-1-8-8S | 2705-08-08 |
| Parker (Triple-Lok / TFD) | 8-8 WGTX-S | 2705-08-08 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
