6400-L-O

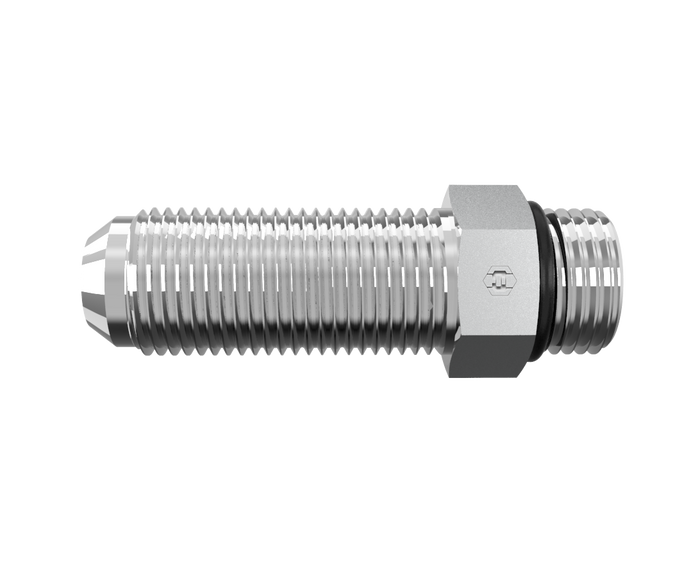

6400-L-O joins a male JIC 37° flare tube end to a male SAE O-ring boss stud end in an extended straight adapter, supplied with the boss O-ring installed.
- Shape
- Connector, Male
- Side 1
- Male JIC
- Side 2
- Male ORB
- Standard
- SAE J514 - Class 2A Thread / SAE J1926
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 17 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 6400-L-04-04-O | 1/4" Male JIC | 7/16-20 Male ORB | 7/16-20 UNF | Steel | Trivalent Zinc | $4.69 | In stock | View |
| 6400-L-05-05-O | 5/16" Male JIC | 1/2-20 Male ORB | 1/2-20 UNF | Steel | Trivalent Zinc | $9.56 | In stock | View |
| 6400-L-06-06-O | 3/8" Male JIC | 9/16-18 Male ORB | 9/16-18 UNF | Steel | Trivalent Zinc | $6.06 | In stock | View |
| 6400-L-06-08-O | 3/8" Male JIC | 3/4-16 Male ORB | 9/16-18 UNF | Steel | Trivalent Zinc | $13.58 | In stock | View |
| 6400-L-08-06-O | 1/2" Male JIC | 9/16-18 Male ORB | 3/4-16 UNF | Steel | Trivalent Zinc | $13.44 | In stock | View |
| 6400-L-08-08-O | 1/2" Male JIC | 3/4-16 Male ORB | 3/4-16 UNF | Steel | Trivalent Zinc | $8.47 | In stock | View |
| 6400-L-08-10-O | 1/2" Male JIC | 7/8-14 Male ORB | 3/4-16 UNF | Steel | Trivalent Zinc | $15.93 | In stock | View |
| 6400-L-10-08-O | 5/8" Male JIC | 3/4-16 Male ORB | 7/8-14 UNF | Steel | Trivalent Zinc | $15.79 | In stock | View |
| 6400-L-10-10-O | 5/8" Male JIC | 7/8-14 Male ORB | 7/8-14 UNF | Steel | Trivalent Zinc | $13.65 | In stock | View |
| 6400-L-12-08-O | 3/4" Male JIC | 3/4-16 Male ORB | 1-1/16-12 UN | Steel | Trivalent Zinc | $31.54 | In stock | View |
| 6400-L-12-12-O | 3/4" Male JIC | 1-1/16-12 Male ORB | 1-1/16-12 UN | Steel | Trivalent Zinc | $20.20 | In stock | View |
| 6400-L-12-16-O | 3/4" Male JIC | 1-5/16-12 Male ORB | 1-1/16-12 UN | Steel | Trivalent Zinc | $51.00 | In stock | View |
| 6400-L-14-14-O | 7/8" Male JIC | 1-3/16-12 Male ORB | 1-3/16-12 UN | Steel | Trivalent Zinc | $173.50 | In stock | View |
| 6400-L-16-16-O | 1" Male JIC | 1-5/16-12 Male ORB | 1-5/16-12 UN | Steel | Trivalent Zinc | $35.21 | In stock | View |
| 6400-L-20-20-O | 1-1/4" Male JIC | 1-5/8-12 Male ORB | 1-5/8-12 UN | Steel | Trivalent Zinc | $45.96 | In stock | View |
| 6400-L-24-24-O | 1-1/2" Male JIC | 1-7/8-12 Male ORB | 1-7/8-12 UN | Steel | Trivalent Zinc | $157.67 | In stock | View |
| 6400-L-32-32-O | 2" Male JIC | 2-1/2-12 Male ORB | 2-1/2-12 UN | Steel | Trivalent Zinc | $553.45 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
