JIC 37° Flare Fittings · 6400-L-O family

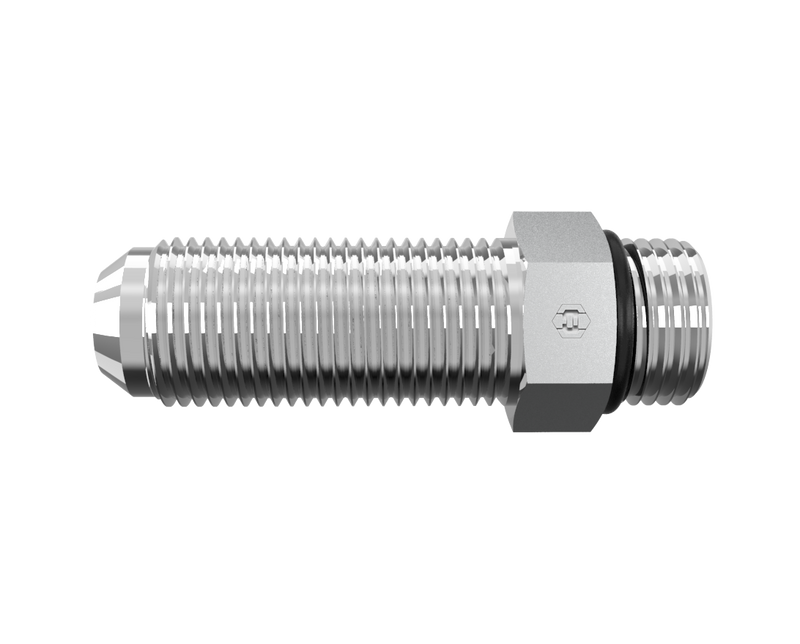

6400-L-08-10-O
1/2" Male JIC x 7/8-14 Male ORB · Male Connector
$4.55
per pieceIn stock
- Side 1
- 1/2" Male JIC
- Side 2
- 7/8-14 Male ORB
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/2" Male JIC
Side 27/8-14 Male ORB
Thread Type3/4-16 UNF
Tube OD1/2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationMale Connector
StandardSAE J514 / SAE J1926
6400-L-08-10-O is a 1/2" Male JIC x 7/8-14 Male ORB in the 6400-L-O Series. For long connections of 37° flared tubes or lines to SAE Port.
Specifications
| Part Number | 6400-L-08-10-O |
|---|---|
| Series | 6400-L-O |
| Product Type | Male Connector |
| Side 1 Connection | 1/2" Male JIC |
| Side 2 Connection | 7/8-14 Male ORB |
| Tube OD | 1/2" |
| Thread Type (Side 1) | 3/4-16 UNF |
| Thread Type (Side 2) | 3/4-16 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J1926 |
| Weight | 0.31 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/2" Male JIC
- Thread3/4-16 UNF
- Tube OD1/2"
- StandardSAE J514 - Class 2A Thread
Side 2
7/8-14 Male ORB
- Thread3/4-16 UNF
- StandardSAE J1926
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationMale Connector
- Weight0.31 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6400-L-O
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 202713-10-8S | 6400-L-08-10-O |
| Parker (Triple-Lok / TFD) | 8-10 FF5OX-S | 6400-L-08-10-O |
| Sae | SAE J514 8-10 071720CN | 6400-L-08-10-O |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
