6402-O

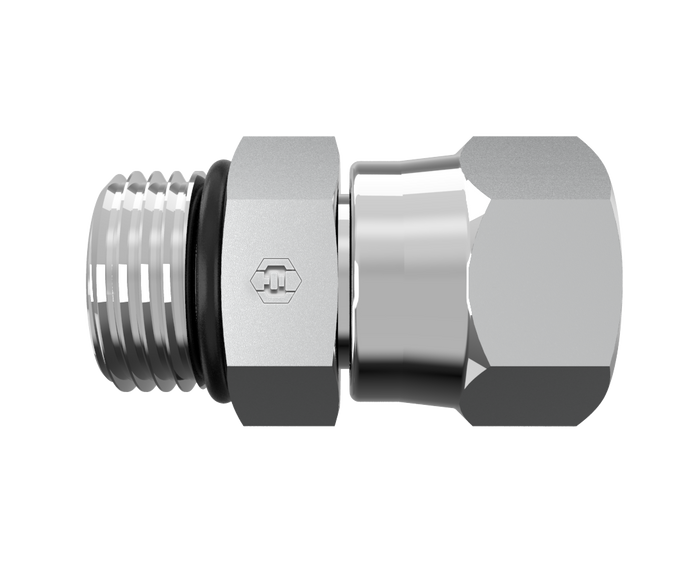

6402-O couples a male SAE O-ring boss stud end, O-ring fitted, to a female JIC 37° swivel end in a straight adapter that aligns without twisting the tube.
- Shape
- Connector, Swivel
- Side 1
- Male ORB
- Side 2
- Female JIC Swivel
- Standard
- SAE J1926 / SAE J514 - Class 2B Thread
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 23 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 6402-04-02-O | 7/16-20 Male ORB | 1/8" Female JIC Swivel | 7/16-20 UNF | Steel | Trivalent Zinc | $15.26 | In stock | View |
| 6402-04-04-O | 7/16-20 Male ORB | 1/4" Female JIC Swivel | 7/16-20 UNF | Steel | Trivalent Zinc | $6.55 | In stock | View |
| 6402-04-06-O | 7/16-20 Male ORB | 3/8" Female JIC Swivel | 7/16-20 UNF | Steel | Trivalent Zinc | $16.45 | In stock | View |
| 6402-04-08-O | 7/16-20 Male ORB | 1/2" Female JIC Swivel | 7/16-20 UNF | Steel | Trivalent Zinc | $16.52 | In stock | View |
| 6402-06-04-O | 9/16-18 Male ORB | 1/4" Female JIC Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $15.26 | In stock | View |
| 6402-06-06-O | 9/16-18 Male ORB | 3/8" Female JIC Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $7.53 | In stock | View |
| 6402-06-08-O | 9/16-18 Male ORB | 1/2" Female JIC Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $13.62 | In stock | View |
| 6402-08-06-O | 3/4-16 Male ORB | 3/8" Female JIC Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $17.95 | In stock | View |
| 6402-08-08-O | 3/4-16 Male ORB | 1/2" Female JIC Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $10.68 | In stock | View |
| 6402-08-10-O | 3/4-16 Male ORB | 5/8" Female JIC Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $16.17 | In stock | View |
| 6402-10-08-O | 7/8-14 Male ORB | 1/2" Female JIC Swivel | 7/8-14 UNF | Steel | Trivalent Zinc | $22.19 | In stock | View |
| 6402-10-10-O | 7/8-14 Male ORB | 5/8" Female JIC Swivel | 7/8-14 UNF | Steel | Trivalent Zinc | $14.39 | In stock | View |
| 6402-10-12-O | 7/8-14 Male ORB | 3/4" Female JIC Swivel | 7/8-14 UNF | Steel | Trivalent Zinc | $31.29 | In stock | View |
| 6402-12-08-O | 1-1/16-12 Male ORB | 1/2" Female JIC Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $220.71 | In stock | View |
| 6402-12-10-O | 1-1/16-12 Male ORB | 5/8" Female JIC Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $46.38 | In stock | View |
| 6402-12-12-O | 1-1/16-12 Male ORB | 3/4" Female JIC Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $14.70 | In stock | View |
| 6402-12-16-O | 1-1/16-12 Male ORB | 1" Female JIC Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $44.91 | In stock | View |
| 6402-16-12-O | 1-5/16-12 Male ORB | 3/4" Female JIC Swivel | 1-5/16-12 UN | Steel | Trivalent Zinc | $46.94 | In stock | View |
| 6402-16-16-O | 1-5/16-12 Male ORB | 1" Female JIC Swivel | 1-5/16-12 UN | Steel | Trivalent Zinc | $22.79 | In stock | View |
| 6402-20-12-O | 1-5/8-12 Male ORB | 3/4" Female JIC Swivel | 1-5/8-12 UN | Steel | Trivalent Zinc | $68.39 | In stock | View |
| 6402-20-20-O | 1-5/8-12 Male ORB | 1-1/4" Female JIC Swivel | 1-5/8-12 UN | Steel | Trivalent Zinc | $51.63 | In stock | View |
| 6402-24-24-O | 1-7/8-12 Male ORB | 1-1/2" Female JIC Swivel | 1-7/8-12 UN | Steel | Trivalent Zinc | $79.73 | In stock | View |
| 6402-32-32-O | 2-1/2-12 Male ORB | 2" Female JIC Swivel | 2-1/2-12 UN | Steel | Trivalent Zinc | $176.26 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
