JIC 37° Flare Fittings · 6402-O family
6402-12-08-O

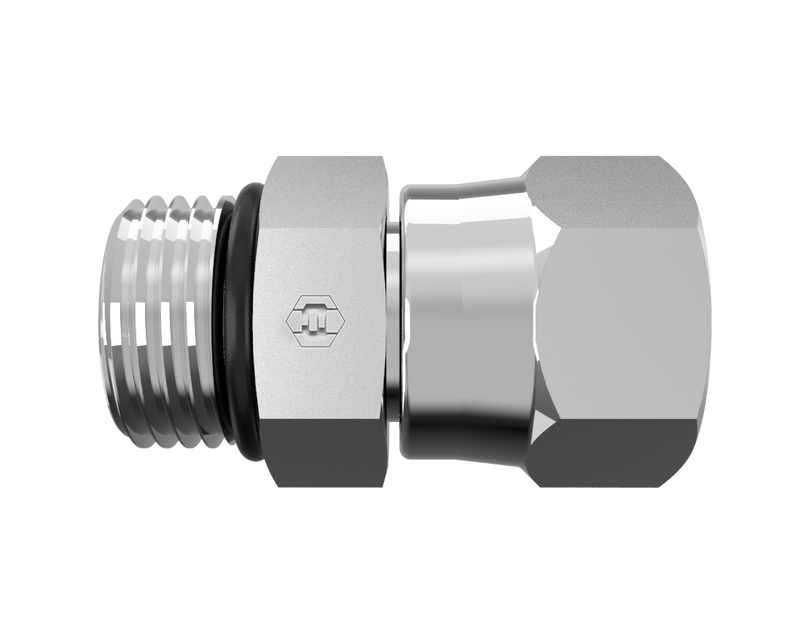

1-1/16-12 Male ORB x 1/2" Female JIC Swivel · Swivel Connector
$63.06
per pieceIn stock
- Side 1
- 1-1/16-12 Male ORB
- Side 2
- 1/2" Female JIC Swivel
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11-1/16-12 Male ORB
Side 21/2" Female JIC Swivel
Thread Type1-1/16-12 UN
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationSwivel Connector
StandardSAE J1926 / SAE J514
6402-12-08-O is a 1-1/16-12 Male ORB x 1/2" Female JIC Swivel in the 6402-O Series. For connecting SAE port to JIC lines using a swivel for alignment.
Specifications
| Part Number | 6402-12-08-O |
|---|---|
| Series | 6402-O |
| Product Type | Swivel Connector |
| Side 1 Connection | 1-1/16-12 Male ORB |
| Side 2 Connection | 1/2" Female JIC Swivel |
| Thread Type (Side 1) | 1-1/16-12 UN |
| Thread Type (Side 2) | 1-1/16-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J1926 |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 0.26 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1-1/16-12 Male ORB
- Thread1-1/16-12 UN
- StandardSAE J1926
Side 2
1/2" Female JIC Swivel
- Thread1-1/16-12 UN
- Tube OD1/2"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationSwivel Connector
- Weight0.26 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6402-O
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2266-12-8S | 6402-12-08-O |
| Parker (Triple-Lok / TFD) | 8-12 F65OX-S | 6402-12-08-O |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
