6500-FG

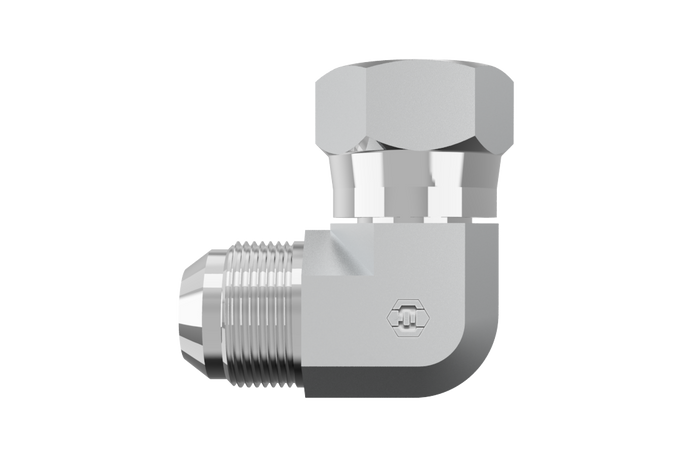

6500-FG turns a male JIC 37° flare tube end 90 degrees into a female JIC 37° swivel end, forged in one piece so the elbow tightens without winding the line.
- Shape
- Elbow, Swivel
- Side 1
- Male JIC
- Side 2
- Female JIC Swivel
- Standard
- SAE J514 - Class 2A Thread / SAE J514 - Class 2B Thread
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 27 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 6500-02-02-FG | 1/8" Male JIC | 1/8" Female JIC Swivel | 5/16-24 UNF | Steel | Trivalent Zinc | $10.15 | In stock | View |
| 6500-03-02-FG | 3/16" Male JIC | 1/8" Female JIC Swivel | 3/8-24 UNF | Steel | Trivalent Zinc | $12.92 | In stock | View |
| 6500-03-03-FG | 3/16" Male JIC | 3/16" Female JIC Swivel | 3/8-24 UNF | Steel | Trivalent Zinc | $13.44 | In stock | View |
| 6500-04-04-FG | 1/4" Male JIC | 1/4" Female JIC Swivel | 7/16-20 UNF | Steel | Trivalent Zinc | $6.27 | In stock | View |
| 6500-04-06-FG | 1/4" Male JIC | 3/8" Female JIC Swivel | 7/16-20 UNF | Steel | Trivalent Zinc | $16.42 | In stock | View |
| 6500-05-05-FG | 5/16" Male JIC | 5/16" Female JIC Swivel | 1/2-20 UNF | Steel | Trivalent Zinc | $8.85 | In stock | View |
| 6500-05-06-FG | 5/16" Male JIC | 3/8" Female JIC Swivel | 1/2-20 UNF | Steel | Trivalent Zinc | $13.76 | In stock | View |
| 6500-06-04-FG | 3/8" Male JIC | 1/4" Female JIC Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $15.93 | In stock | View |
| 6500-06-06-FG | 3/8" Male JIC | 3/8" Female JIC Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $6.86 | In stock | View |
| 6500-06-08-FG | 3/8" Male JIC | 1/2" Female JIC Swivel | 9/16-18 UNF | Steel | Trivalent Zinc | $17.29 | In stock | View |
| 6500-08-06-FG | 1/2" Male JIC | 3/8" Female JIC Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $18.97 | In stock | View |
| 6500-08-08-FG | 1/2" Male JIC | 1/2" Female JIC Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $9.59 | In stock | View |
| 6500-08-10-FG | 1/2" Male JIC | 5/8" Female JIC Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $22.79 | In stock | View |
| 6500-08-12-FG | 1/2" Male JIC | 3/4" Female JIC Swivel | 3/4-16 UNF | Steel | Trivalent Zinc | $37.24 | In stock | View |
| 6500-10-08-FG | 5/8" Male JIC | 1/2" Female JIC Swivel | 7/8-14 UNF | Steel | Trivalent Zinc | $19.08 | In stock | View |
| 6500-10-10-FG | 5/8" Male JIC | 5/8" Female JIC Swivel | 7/8-14 UNF | Steel | Trivalent Zinc | $11.17 | In stock | View |
| 6500-10-12-FG | 5/8" Male JIC | 3/4" Female JIC Swivel | 7/8-14 UNF | Steel | Trivalent Zinc | $37.00 | In stock | View |
| 6500-12-08-FG | 3/4" Male JIC | 1/2" Female JIC Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $34.30 | In stock | View |
| 6500-12-10-FG | 3/4" Male JIC | 5/8" Female JIC Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $38.82 | In stock | View |
| 6500-12-12-FG | 3/4" Male JIC | 3/4" Female JIC Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $19.74 | In stock | View |
| 6500-12-16-FG | 3/4" Male JIC | 1" Female JIC Swivel | 1-1/16-12 UN | Steel | Trivalent Zinc | $99.79 | In stock | View |
| 6500-14-14-FG | 7/8" Male JIC | 7/8" Female JIC Swivel | 1-3/16-12 UN | Steel | Trivalent Zinc | $47.67 | In stock | View |
| 6500-16-12-FG | 1" Male JIC | 3/4" Female JIC Swivel | 1-5/16-12 UN | Steel | Trivalent Zinc | $32.87 | In stock | View |
| 6500-16-16-FG | 1" Male JIC | 1" Female JIC Swivel | 1-5/16-12 UN | Steel | Trivalent Zinc | $30.10 | In stock | View |
| 6500-20-20-FG | 1-1/4" Male JIC | 1-1/4" Female JIC Swivel | 1-5/8-12 UN | Steel | Trivalent Zinc | $68.21 | In stock | View |
| 6500-24-24-FG | 1-1/2" Male JIC | 1-1/2" Female JIC Swivel | 1-7/8-12 UN | Steel | Trivalent Zinc | $108.01 | In stock | View |
| 6500-32-32-FG | 2" Male JIC | 2" Female JIC Swivel | 2-1/2-12 UN | Steel | Trivalent Zinc | $366.03 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
