JIC 37° Flare Fittings · 6500-FG family
6500-32-32-FG
2" Male JIC x 2" Female JIC Swivel · Swivel Elbow
$366.03
per pieceIn stock
- Side 1
- 2" Male JIC
- Side 2
- 2" Female JIC Swivel
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12" Male JIC
Side 22" Female JIC Swivel
Thread Type2-1/2-12 UN
Tube OD2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationSwivel Elbow
StandardSAE J514 / SAE J514

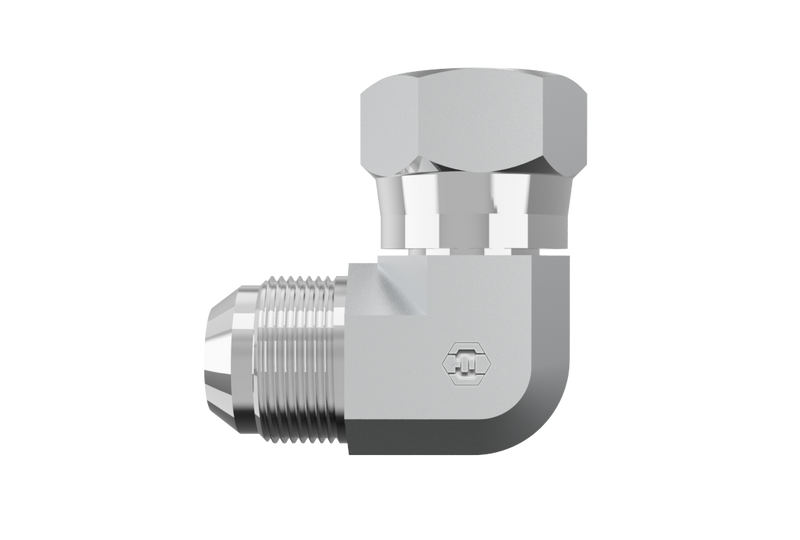

6500-32-32-FG is a 2" Male JIC x 2" Female JIC Swivel in the 6500-FG Series. 6500-FG turns a male JIC 37° flare tube end 90 degrees into a female JIC 37° swivel end, forged in one piece so the elbow tightens without winding the line.
Specifications
| Part Number | 6500-32-32-FG |
|---|---|
| Series | 6500-FG |
| Product Type | Swivel Elbow |
| Side 1 Connection | 2" Male JIC |
| Side 2 Connection | 2" Female JIC Swivel |
| Tube OD (Side 1) | 2" |
| Thread Type (Side 1) | 2-1/2-12 UN |
| Thread Type (Side 2) | 2-1/2-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 4.59 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2" Male JIC
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J514 - Class 2A Thread
Side 2
2" Female JIC Swivel
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationSwivel Elbow
- Weight4.59 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6500-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2071-32-32S | 6500-32-32-FG |
| Parker (Triple-Lok / TFD) | 32 C6X-S | 6500-32-32-FG |
| Sae | SAE J514 32-32 070221C | 6500-32-32-FG |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
