6501-FG

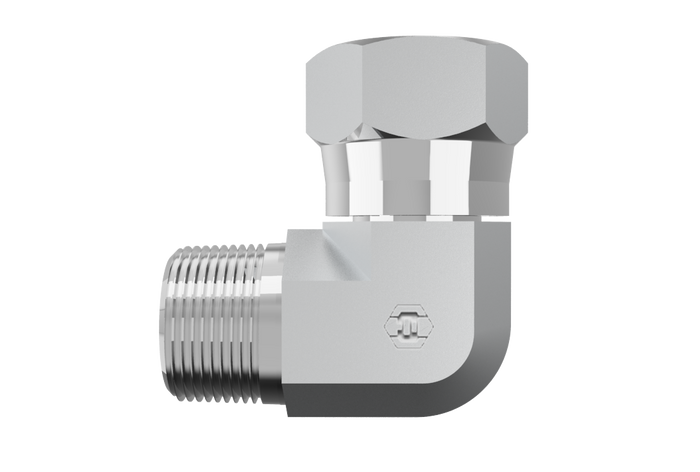

6501-FG bends a male NPTF pipe end through 90 degrees to a female JIC 37° swivel end, forged one-piece so the flare nut seats without loading the tube.
- Shape
- Elbow, Swivel
- Side 1
- Male NPTF 30°
- Side 2
- Female JIC Swivel
- Standard
- SAE J476 / SAE J514 - Class 2B Thread
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 19 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 6501-02-04-FG | 1/8" Male NPTF 30° | 1/4" Female JIC Swivel | 1/8-27 NPTF | Steel | Trivalent Zinc | $7.39 | In stock | View |
| 6501-02-05-FG | 1/8" Male NPTF 30° | 5/16" Female JIC Swivel | 1/8-27 NPTF | Steel | Trivalent Zinc | $13.72 | In stock | View |
| 6501-04-04-FG | 1/4" Male NPTF 30° | 1/4" Female JIC Swivel | 1/4-18 NPTF | Steel | Trivalent Zinc | $11.90 | In stock | View |
| 6501-04-05-FG | 1/4" Male NPTF 30° | 5/16" Female JIC Swivel | 1/4-18 NPTF | Steel | Trivalent Zinc | $18.06 | In stock | View |
| 6501-04-06-FG | 1/4" Male NPTF 30° | 3/8" Female JIC Swivel | 1/4-18 NPTF | Steel | Trivalent Zinc | $11.17 | In stock | View |
| 6501-06-04-FG | 3/8" Male NPTF 30° | 1/4" Female JIC Swivel | 3/8-18 NPTF | Steel | Trivalent Zinc | $25.69 | In stock | View |
| 6501-06-06-FG | 3/8" Male NPTF 30° | 3/8" Female JIC Swivel | 3/8-18 NPTF | Steel | Trivalent Zinc | $13.27 | In stock | View |
| 6501-06-08-FG | 3/8" Male NPTF 30° | 1/2" Female JIC Swivel | 3/8-18 NPTF | Steel | Trivalent Zinc | $13.72 | In stock | View |
| 6501-08-06-FG | 1/2" Male NPTF 30° | 3/8" Female JIC Swivel | 1/2-14 NPTF | Steel | Trivalent Zinc | $13.72 | In stock | View |
| 6501-08-08-FG | 1/2" Male NPTF 30° | 1/2" Female JIC Swivel | 1/2-14 NPTF | Steel | Trivalent Zinc | $13.97 | In stock | View |
| 6501-08-10-FG | 1/2" Male NPTF 30° | 5/8" Female JIC Swivel | 1/2-14 NPTF | Steel | Trivalent Zinc | $16.17 | In stock | View |
| 6501-08-12-FG | 1/2" Male NPTF 30° | 3/4" Female JIC Swivel | 1/2-14 NPTF | Steel | Trivalent Zinc | $25.24 | In stock | View |
| 6501-12-08-FG | 3/4" Male NPTF 30° | 1/2" Female JIC Swivel | 3/4-14 NPTF | Steel | Trivalent Zinc | $25.58 | In stock | View |
| 6501-12-12-FG | 3/4" Male NPTF 30° | 3/4" Female JIC Swivel | 3/4-14 NPTF | Steel | Trivalent Zinc | $20.02 | In stock | View |
| 6501-12-14-FG | 3/4" Male NPTF 30° | 7/8" Female JIC Swivel | 3/4-14 NPTF | Steel | Trivalent Zinc | $38.19 | In stock | View |
| 6501-16-16-FG | 1" Male NPTF 30° | 1" Female JIC Swivel | 1-11-1/2 NPTF | Steel | Trivalent Zinc | $29.82 | In stock | View |
| 6501-20-20-FG | 1-1/4" Male NPTF 30° | 1-1/4" Female JIC Swivel | 1-1/4-11-1/2 NPTF | Steel | Trivalent Zinc | $86.91 | In stock | View |
| 6501-24-24-FG | 1-1/2" Male NPTF 30° | 1-1/2" Female JIC Swivel | 1-1/2-11-1/2 NPTF | Steel | Trivalent Zinc | $135.07 | In stock | View |
| 6501-32-32-FG | 2" Male NPTF 30° | 2" Female JIC Swivel | 2-11-1/2 NPTF | Steel | Trivalent Zinc | $580.05 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
