JIC 37° Flare Fittings · 6501-FG family
6501-32-32-FG

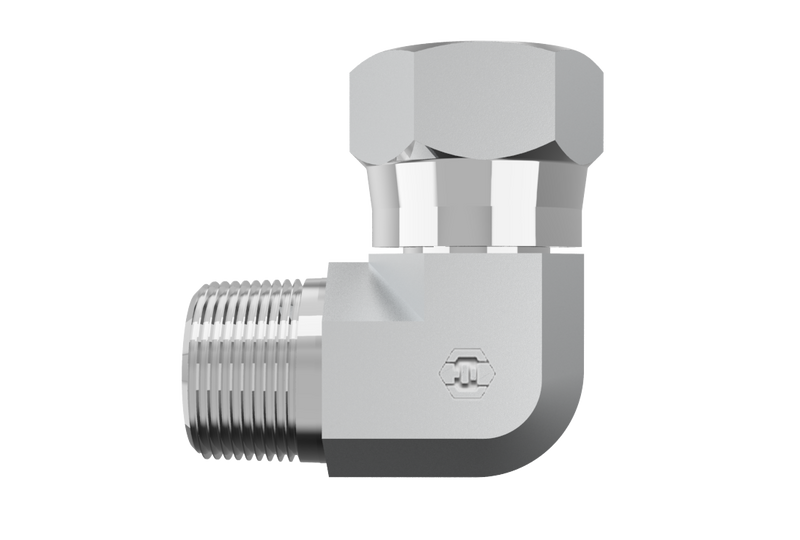

2" Male NPTF 30° x 2" Female JIC Swivel · Swivel Elbow
$165.73
per pieceIn stock
- Side 1
- 2" Male NPTF 30°
- Side 2
- 2" Female JIC Swivel
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12" Male NPTF 30°
Side 22" Female JIC Swivel
Thread Type2-11-1/2 NPTF
Pipe Size2"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationSwivel Elbow
StandardSAE J476 / SAE J514
6501-32-32-FG is a 2" Male NPTF 30° x 2" Female JIC Swivel in the 6501-FG Series. For connecting a pipe-threaded port to a 37° flared tube or line at a 90° angle, with the female swivel end allowing the elbow to be tightened without twisting.
Specifications
| Part Number | 6501-32-32-FG |
|---|---|
| Series | 6501-FG |
| Product Type | Swivel Elbow |
| Side 1 Connection | 2" Male NPTF 30° |
| Side 2 Connection | 2" Female JIC Swivel |
| Pipe Size (Side 1) | 2" |
| Thread Type (Side 1) | 2-11-1/2 NPTF |
| Thread Type (Side 2) | 2-11-1/2 NPTF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J476 |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 3.98 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2" Male NPTF 30°
- Thread2-11-1/2 NPTF
- Pipe Size2"
- StandardSAE J476
Side 2
2" Female JIC Swivel
- Thread2-11-1/2 NPTF
- Tube OD2"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationSwivel Elbow
- Weight3.98 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6501-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2250-32-32S | 6501-32-32-FG |
| Parker (Triple-Lok / TFD) | 32 X6EF-S | 6501-32-32-FG |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
