6802-NWO-FG

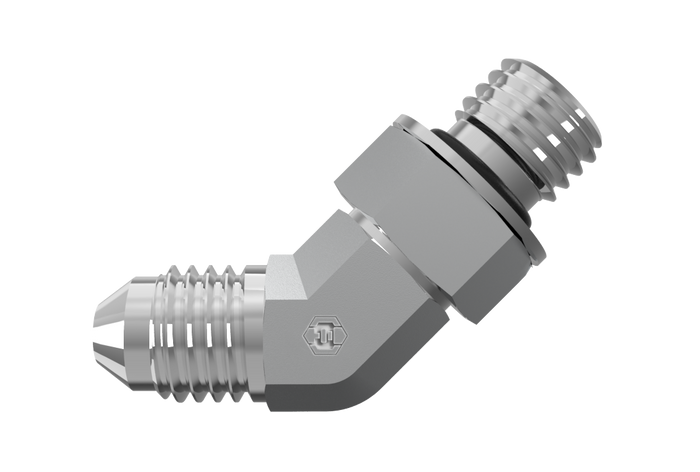

6802-NWO-FG angles a male JIC 37° flare tube end toward an adjustable SAE O-ring boss stud end in a 45-degree elbow, forged one-piece and supplied with nut, washer and O-ring.
- Shape
- Adjustable Elbow
- Side 1
- Male JIC
- Side 2
- Male Adjustable O-Ring Boss
- Standard
- SAE J514 - Class 2A Thread / SAE J1453 / J514
- Material
- Steel
- Plating
- Trivalent Zinc
- Part numbers
- 42 in this series
| Part Number | Side 1 | Side 2 | Thread | Material | Plating | Price | Stock | |
|---|---|---|---|---|---|---|---|---|
| 6802-03-03-NWO-FG | 3/16" Male JIC | 3/8-24 Male Adjustable O-Ring Boss | 3/8-24 UNF | Steel | Trivalent Zinc | $7.24 | In stock | View |
| 6802-04-04-NWO-FG | 1/4" Male JIC | 7/16-20 Male Adjustable O-Ring Boss | 7/16-20 UNF | Steel | Trivalent Zinc | $5.29 | In stock | View |
| 6802-04-05-NWO-FG | 1/4" Male JIC | 1/2-20 Male Adjustable O-Ring Boss | 7/16-20 UNF | Steel | Trivalent Zinc | $10.82 | In stock | View |
| 6802-04-06-NWO-FG | 1/4" Male JIC | 9/16-18 Male Adjustable O-Ring Boss | 7/16-20 UNF | Steel | Trivalent Zinc | $7.14 | In stock | View |
| 6802-04-08-NWO-FG | 1/4" Male JIC | 3/4-16 Male Adjustable O-Ring Boss | 7/16-20 UNF | Steel | Trivalent Zinc | $11.34 | In stock | View |
| 6802-05-04-NWO-FG | 5/16" Male JIC | 7/16-20 Male Adjustable O-Ring Boss | 1/2-20 UNF | Steel | Trivalent Zinc | $18.58 | In stock | View |
| 6802-05-05-NWO-FG | 5/16" Male JIC | 1/2-20 Male Adjustable O-Ring Boss | 1/2-20 UNF | Steel | Trivalent Zinc | $12.57 | In stock | View |
| 6802-05-06-NWO-FG | 5/16" Male JIC | 9/16-18 Male Adjustable O-Ring Boss | 1/2-20 UNF | Steel | Trivalent Zinc | $20.51 | In stock | View |
| 6802-06-04-NWO-FG | 3/8" Male JIC | 7/16-20 Male Adjustable O-Ring Boss | 9/16-18 UNF | Steel | Trivalent Zinc | $9.80 | In stock | View |
| 6802-06-05-NWO-FG | 3/8" Male JIC | 1/2-20 Male Adjustable O-Ring Boss | 9/16-18 UNF | Steel | Trivalent Zinc | $13.09 | In stock | View |
| 6802-06-06-NWO-FG | 3/8" Male JIC | 9/16-18 Male Adjustable O-Ring Boss | 9/16-18 UNF | Steel | Trivalent Zinc | $6.93 | In stock | View |
| 6802-06-08-NWO-FG | 3/8" Male JIC | 3/4-16 Male Adjustable O-Ring Boss | 9/16-18 UNF | Steel | Trivalent Zinc | $13.20 | In stock | View |
| 6802-06-10-NWO-FG | 3/8" Male JIC | 7/8-14 Male Adjustable O-Ring Boss | 9/16-18 UNF | Steel | Trivalent Zinc | $18.41 | In stock | View |
| 6802-06-12-NWO-FG | 3/8" Male JIC | 1-1/16-12 Male Adjustable O-Ring Boss | 9/16-18 UNF | Steel | Trivalent Zinc | $24.08 | In stock | View |
| 6802-08-04-NWO-FG | 1/2" Male JIC | 7/16-20 Male Adjustable O-Ring Boss | 3/4-16 UNF | Steel | Trivalent Zinc | $10.33 | In stock | View |
| 6802-08-06-NWO-FG | 1/2" Male JIC | 9/16-18 Male Adjustable O-Ring Boss | 3/4-16 UNF | Steel | Trivalent Zinc | $12.43 | In stock | View |
| 6802-08-08-NWO-FG | 1/2" Male JIC | 3/4-16 Male Adjustable O-Ring Boss | 3/4-16 UNF | Steel | Trivalent Zinc | $8.54 | In stock | View |
| 6802-08-10-NWO-FG | 1/2" Male JIC | 7/8-14 Male Adjustable O-Ring Boss | 3/4-16 UNF | Steel | Trivalent Zinc | $12.22 | In stock | View |
| 6802-08-12-NWO-FG | 1/2" Male JIC | 1-1/16-12 Male Adjustable O-Ring Boss | 3/4-16 UNF | Steel | Trivalent Zinc | $36.02 | In stock | View |
| 6802-10-08-NWO-FG | 5/8" Male JIC | 3/4-16 Male Adjustable O-Ring Boss | 7/8-14 UNF | Steel | Trivalent Zinc | $18.45 | In stock | View |
| 6802-10-10-NWO-FG | 5/8" Male JIC | 7/8-14 Male Adjustable O-Ring Boss | 7/8-14 UNF | Steel | Trivalent Zinc | $15.12 | In stock | View |
| 6802-10-12-NWO-FG | 5/8" Male JIC | 1-1/16-12 Male Adjustable O-Ring Boss | 7/8-14 UNF | Steel | Trivalent Zinc | $20.76 | In stock | View |
| 6802-12-06-NWO-FG | 3/4" Male JIC | 9/16-18 Male Adjustable O-Ring Boss | 1-1/16-12 UN | Steel | Trivalent Zinc | $26.15 | In stock | View |
| 6802-12-08-NWO-FG | 3/4" Male JIC | 3/4-16 Male Adjustable O-Ring Boss | 1-1/16-12 UN | Steel | Trivalent Zinc | $32.94 | In stock | View |
| 6802-12-10-NWO-FG | 3/4" Male JIC | 7/8-14 Male Adjustable O-Ring Boss | 1-1/16-12 UN | Steel | Trivalent Zinc | $23.28 | In stock | View |
| 6802-12-12-NWO-FG | 3/4" Male JIC | 1-1/16-12 Male Adjustable O-Ring Boss | 1-1/16-12 UN | Steel | Trivalent Zinc | $18.41 | In stock | View |
| 6802-12-14-NWO-FG | 3/4" Male JIC | 1-3/16-12 Male Adjustable O-Ring Boss | 1-1/16-12 UN | Steel | Trivalent Zinc | $45.64 | In stock | View |
| 6802-12-16-NWO-FG | 3/4" Male JIC | 1-5/16-12 Male Adjustable O-Ring Boss | 1-1/16-12 UN | Steel | Trivalent Zinc | $33.85 | In stock | View |
| 6802-14-14-NWO-FG | 7/8" Male JIC | 1-3/16-12 Male Adjustable O-Ring Boss | 1-3/16-12 UN | Steel | Trivalent Zinc | $74.80 | In stock | View |
| 6802-16-10-NWO-FG | 1" Male JIC | 7/8-14 Male Adjustable O-Ring Boss | 1-5/16-12 UN | Steel | Trivalent Zinc | $56.21 | In stock | View |
| 6802-16-12-NWO-FG | 1" Male JIC | 1-1/16-12 Male Adjustable O-Ring Boss | 1-5/16-12 UN | Steel | Trivalent Zinc | $28.04 | In stock | View |
| 6802-16-14-NWO-FG | 1" Male JIC | 1-3/16-12 Male Adjustable O-Ring Boss | 1-5/16-12 UN | Steel | Trivalent Zinc | $43.93 | In stock | View |
| 6802-16-16-NWO-FG | 1" Male JIC | 1-5/16-12 Male Adjustable O-Ring Boss | 1-5/16-12 UN | Steel | Trivalent Zinc | $27.20 | In stock | View |
| 6802-16-20-NWO-FG | 1" Male JIC | 1-5/8-12 Male Adjustable O-Ring Boss | 1-5/16-12 UN | Steel | Trivalent Zinc | $81.02 | In stock | View |
| 6802-20-12-NWO-FG | 1-1/4" Male JIC | 1-1/16-12 Male Adjustable O-Ring Boss | 1-5/8-12 UN | Steel | Trivalent Zinc | $93.31 | In stock | View |
| 6802-20-16-NWO-FG | 1-1/4" Male JIC | 1-5/16-12 Male Adjustable O-Ring Boss | 1-5/8-12 UN | Steel | Trivalent Zinc | $69.96 | In stock | View |
| 6802-20-20-NWO-FG | 1-1/4" Male JIC | 1-5/8-12 Male Adjustable O-Ring Boss | 1-5/8-12 UN | Steel | Trivalent Zinc | $54.92 | In stock | View |
| 6802-20-24-NWO-FG | 1-1/4" Male JIC | 1-7/8-12 Male Adjustable O-Ring Boss | 1-5/8-12 UN | Steel | Trivalent Zinc | $99.89 | In stock | View |
| 6802-24-20-NWO-FG | 1-1/2" Male JIC | 1-5/8-12 Male Adjustable O-Ring Boss | 1-7/8-12 UN | Steel | Trivalent Zinc | $130.94 | In stock | View |
| 6802-24-24-NWO-FG | 1-1/2" Male JIC | 1-7/8-12 Male Adjustable O-Ring Boss | 1-7/8-12 UN | Steel | Trivalent Zinc | $70.52 | In stock | View |
| 6802-24-32-NWO-FG | 1-1/2" Male JIC | 2-1/2-12 Male Adjustable O-Ring Boss | 1-7/8-12 UN | Steel | Trivalent Zinc | $175.84 | In stock | View |
| 6802-32-32-NWO-FG | 2" Male JIC | 2-1/2-12 Male Adjustable O-Ring Boss | 2-1/2-12 UN | Steel | Trivalent Zinc | $181.02 | In stock | View |
No parts on this page match the filter. or try the catalog search.
Full specifications for each part — connections, thread standards, configuration, and weight — are on the product page. To identify an unknown thread, see the thread identification guide and size charts.
