JIC 37° Flare Fittings · 6802-NWO-FG family

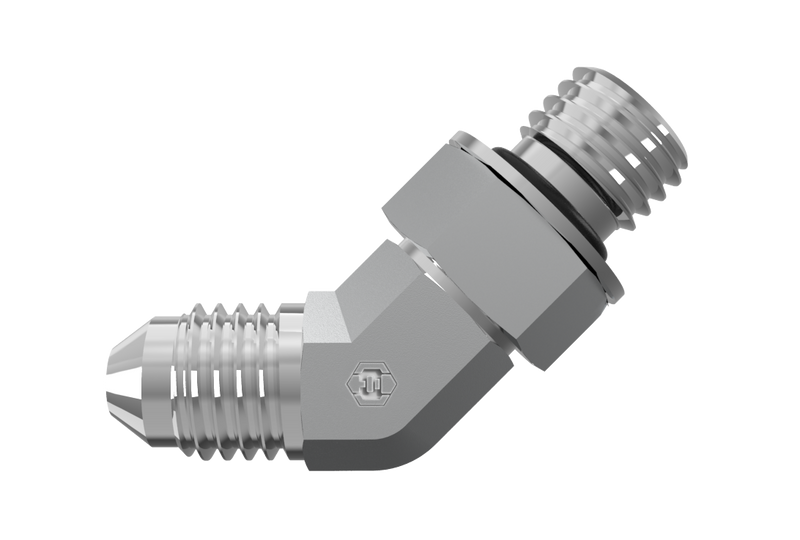

6802-06-04-NWO-FG
3/8" Male JIC x 7/16-20 Male Adjustable O-Ring Boss · Adjustable Elbow
$2.80
per pieceIn stock
- Side 1
- 3/8" Male JIC
- Side 2
- 7/16-20 Male Adjustable O-Ring Boss
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/8" Male JIC
Side 27/16-20 Male Adjustable O-Ring Boss
Thread Type9/16-18 UNF
Tube OD3/8"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationAdjustable Elbow
StandardSAE J514 / SAE J1453 / J514
6802-06-04-NWO-FG is a 3/8" Male JIC x 7/16-20 Male Adjustable O-Ring Boss in the 6802-NWO-FG Series. For connecting 37° flared tubes or lines to an O-ring boss port at a 45° angle.
Specifications
| Part Number | 6802-06-04-NWO-FG |
|---|---|
| Series | 6802-NWO-FG |
| Product Type | Adjustable Elbow |
| Side 1 Connection | 3/8" Male JIC |
| Side 2 Connection | 7/16-20 Male Adjustable O-Ring Boss |
| Tube OD | 3/8" |
| Thread Type (Side 1) | 9/16-18 UNF |
| Thread Type (Side 2) | 9/16-18 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J1453 / J514 |
| Weight | 0.09 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/8" Male JIC
- Thread9/16-18 UNF
- Tube OD3/8"
- StandardSAE J514 - Class 2A Thread
Side 2
7/16-20 Male Adjustable O-Ring Boss
- Thread9/16-18 UNF
- StandardSAE J1453 / J514
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationAdjustable Elbow
- Weight0.09 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6802-NWO-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2061-4-6S | 6802-06-04-NWO-FG |
| Parker (Triple-Lok / TFD) | 6-4 V5OX-S | 6802-06-04-NWO-FG |
| Sae | SAE J514 6-4 070320CN | 6802-06-04-NWO-FG |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
