JIC 37° Flare Fittings · 0304-C family
0304-C-06-SS
3/8" Female JIC · Cap
$6.58
per pieceIn stock
- Side 1
- 3/8" Female JIC
- Material
- Stainless Steel
- Thread
- 9/16-18 UNF
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/8" Female JIC
Thread Type9/16-18 UNF
Tube OD3/8"
MaterialStainless Steel
ConfigurationCap
StandardSAE J514

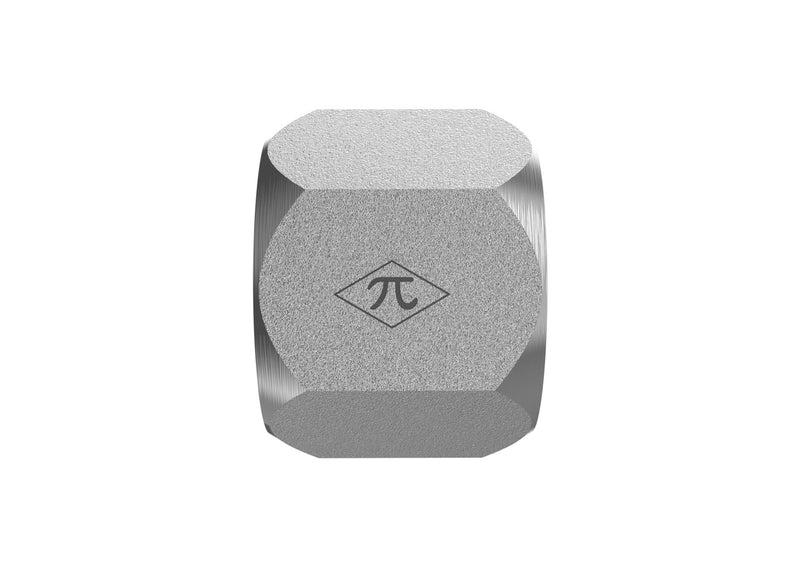

0304-C-06-SS is a 3/8" Female JIC in the 0304-C Series. For sealing off male 37° flare ends.
Specifications
| Part Number | 0304-C-06-SS |
|---|---|
| Series | 0304-C |
| Product Type | Cap |
| Side 1 Connection | 3/8" Female JIC |
| Tube OD | 3/8" |
| Thread Type (Side 1) | 9/16-18 UNF |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 |
| Weight | 0.05 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/8" Female JIC
- Thread9/16-18 UNF
- Tube OD3/8"
- StandardSAE J514
Construction
- MaterialStainless Steel
- ConfigurationCap
- Weight0.05 lb
Product Family
CategoryJIC 37° Flare Fittings
Family0304-C
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-210292-6 | 0304-C-06-SS |
| Parker (Triple-Lok / TFD) | 6 FNTX-SS | 0304-C-06-SS |
| Sae | SAE J514 6 070112S | 0304-C-06-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
