JIC 37° Flare Fittings · 0304-C family

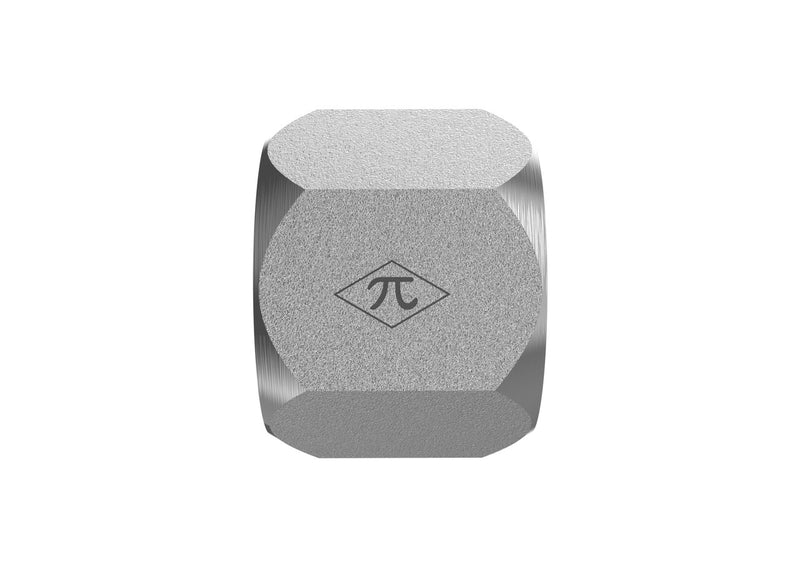

0304-C-16
1" Female JIC · End Cap
$7.42
per pieceIn stock
- Side 1
- 1" Female JIC
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11" Female JIC
Thread Type1-5/16-12 UN
Tube OD1"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationEnd Cap
StandardSAE J514
0304-C-16 is a 1" Female JIC in the 0304-C Series. 0304-C works as a cap over a male JIC 37° flare tube end, sealing the female JIC thread onto the flare seat so an unused line can be closed off.
Specifications
| Part Number | 0304-C-16 |
|---|---|
| Series | 0304-C |
| Product Type | End Cap |
| Side 1 Connection | 1" Female JIC |
| Tube OD | 1" |
| Thread Type (Side 1) | 1-5/16-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 |
| Weight | 0.28 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1" Female JIC
- Thread1-5/16-12 UN
- Tube OD1"
- StandardSAE J514
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationEnd Cap
- Weight0.28 lb
Product Family
CategoryJIC 37° Flare Fittings
Family0304-C
Cross Reference
| Brand | Part Number | Higher Fittings Equivalent |
|---|---|---|
| Aeroquip | 210292-16S | 0304-C-16 |
| Parker (Triple-Lok / TFD) | 16 FNTX-S | 0304-C-16 |
| Sae | SAE J514 16 070112C | 0304-C-16 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
