JIC 37° Flare Fittings · 0304-C family
0304-C-32-SS
2" Female JIC · Cap
$118.15
per pieceIn stock
- Side 1
- 2" Female JIC
- Material
- Stainless Steel
- Thread
- 2-1/2-12 UN
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12" Female JIC
Thread Type2-1/2-12 UN
Tube OD2"
MaterialStainless Steel
ConfigurationCap
StandardSAE J514

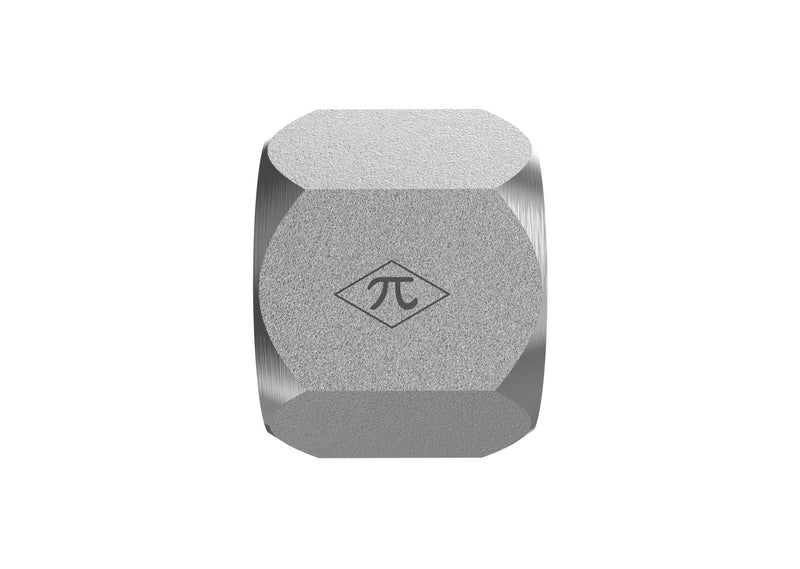

0304-C-32-SS is a 2" Female JIC in the 0304-C Series. For sealing off male 37° flare ends.
Specifications
| Part Number | 0304-C-32-SS |
|---|---|
| Series | 0304-C |
| Product Type | Cap |
| Side 1 Connection | 2" Female JIC |
| Tube OD | 2" |
| Thread Type (Side 1) | 2-1/2-12 UN |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 |
| Weight | 1.36 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2" Female JIC
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J514
Construction
- MaterialStainless Steel
- ConfigurationCap
- Weight1.36 lb
Product Family
CategoryJIC 37° Flare Fittings
Family0304-C
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-210292-32 | 0304-C-32-SS |
| Parker (Triple-Lok / TFD) | 32 FNTX-SS | 0304-C-32-SS |
| Sae | SAE J514 32 070112S | 0304-C-32-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
