JIC 37° Flare Fittings · 0318 family
0318-20

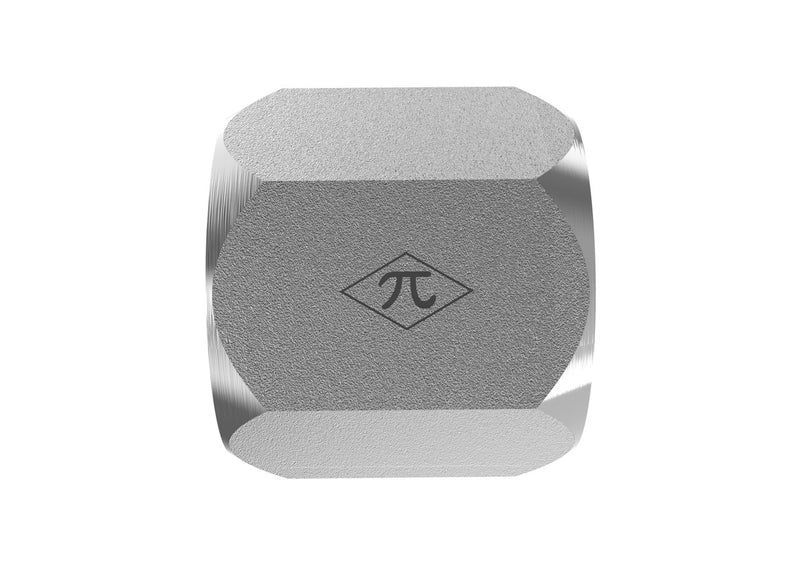

1-1/4" JIC Tube Nut · Nut, Tube Flare
$11.94
per pieceIn stock
- Side 1
- 1-1/4" JIC Tube Nut
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11-1/4" JIC Tube Nut
Thread Type1-5/8-12
Tube OD1-1/4"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationNut, Tube Flare
StandardSAE J514
0318-20 is a 1-1/4" JIC Tube Nut in the 0318 Series. 0318 is a standard-length JIC tube nut, threading over the flare sleeve and clamping the flared tube against a male 37° flare fitting in SAE J514 assemblies.
Specifications
| Part Number | 0318-20 |
|---|---|
| Series | 0318 |
| Product Type | Nut, Tube Flare |
| Side 1 Connection | 1-1/4" JIC Tube Nut |
| Tube OD | 1-1/4" |
| Thread Type (Side 1) | 1-5/8-12 |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 |
| Weight | 0.53 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1-1/4" JIC Tube Nut
- Thread1-5/8-12
- Tube OD1-1/4"
- StandardSAE J514
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationNut, Tube Flare
- Weight0.53 lb
Product Family
CategoryJIC 37° Flare Fittings
Family0318
Cross Reference
| Brand | Part Number | Higher Fittings Equivalent |
|---|---|---|
| Aeroquip | 1290-20 | 0318-20 |
| Parker (Triple-Lok / TFD) | 20 BTX | 0318-20 |
| Sae | 70110 | 0318-20 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
