JIC 37° Flare Fittings · 0319 family
0319-16

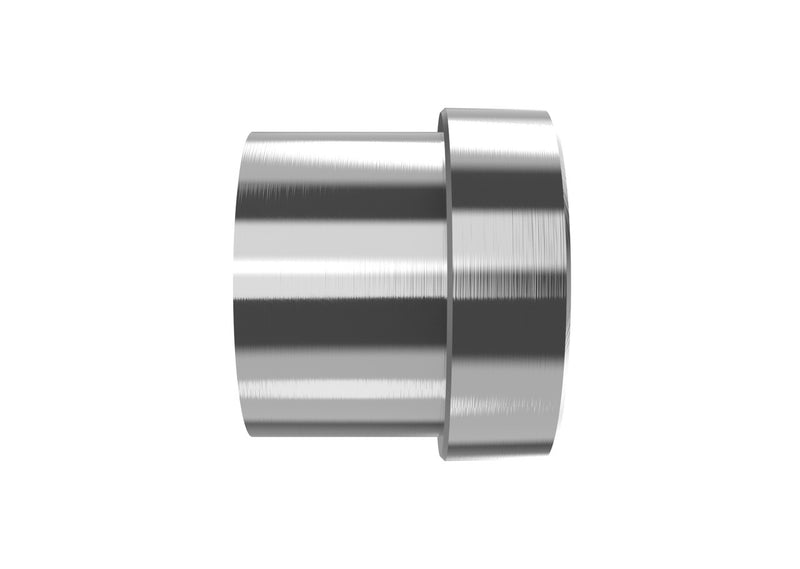

1" JIC Tube Sleeve · Tube Sleeve
$1.01
per pieceIn stock
- Side 1
- 1" JIC Tube Sleeve
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11" JIC Tube Sleeve
Tube OD1"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationTube Sleeve
StandardSAE J514
0319-16 is a 1" JIC Tube Sleeve in the 0319 Series. For assembly with 37° flared tube nut, male 37° flare fitting, and flared tube, to create a reliable tube connection.
Specifications
| Part Number | 0319-16 |
|---|---|
| Series | 0319 |
| Product Type | Tube Sleeve |
| Side 1 Connection | 1" JIC Tube Sleeve |
| Tube OD | 1" |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 |
| Weight | 0.04 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1" JIC Tube Sleeve
- Tube OD1"
- StandardSAE J514
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationTube Sleeve
- Weight0.04 lb
Product Family
CategoryJIC 37° Flare Fittings
Family0319
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 900605-16S | 0319-16 |
| Parker (Triple-Lok / TFD) | 16 TX-S | 0319-16 |
| Sae | SAE J514 16 070115C | 0319-16 |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
