JIC 37° Flare Fittings · 2404-LL family

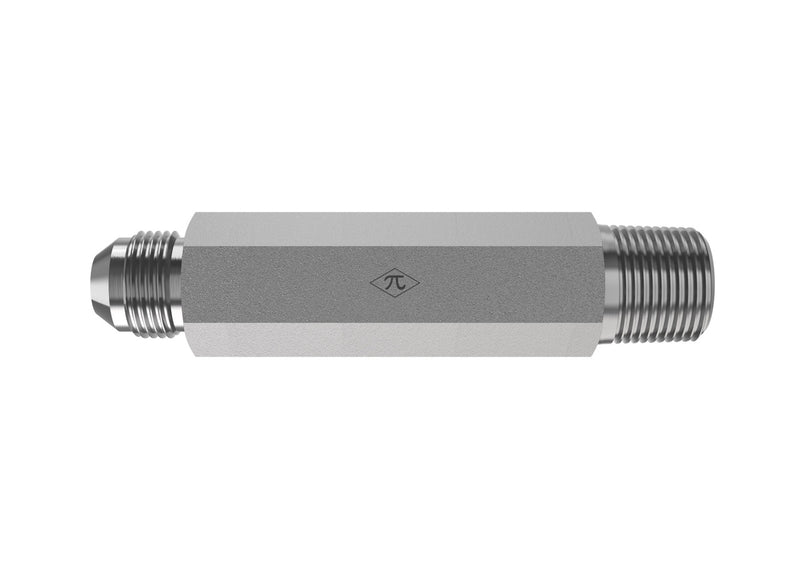

2404-LL-16-16-SS
1" Male JIC x 1" Male NPTF 30° · Connector
$91.31
per pieceIn stock
- Side 1
- 1" Male JIC
- Side 2
- 1" Male NPTF 30°
- Material
- Stainless Steel
- Plating
- Passivated
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11" Male JIC
Side 21" Male NPTF 30°
Thread Type1-5/16-12 UN
Tube OD1"
Pipe Size1"
MaterialStainless Steel
Plating / FinishPassivated
ConfigurationConnector
StandardSAE J514 / SAE J476
2404-LL-16-16-SS is a 1" Male JIC x 1" Male NPTF 30° in the 2404-LL Series. For extra long connections of 37° flared tubes or lines to pipe without requiring pipe sealant.
Specifications
| Part Number | 2404-LL-16-16-SS |
|---|---|
| Series | 2404-LL |
| Product Type | Connector |
| Side 1 Connection | 1" Male JIC |
| Side 2 Connection | 1" Male NPTF 30° |
| Tube OD | 1" |
| Pipe Size (Side 2) | 1" |
| Thread Type (Side 1) | 1-5/16-12 UN |
| Thread Type (Side 2) | 1-5/16-12 UN |
| Material | Stainless Steel |
| Finish / Plating | Passivated |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J476 |
| Weight | 1.40 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1" Male JIC
- Thread1-5/16-12 UN
- Tube OD1"
- StandardSAE J514 - Class 2A Thread
Side 2
1" Male NPTF 30°
- Thread1-5/16-12 UN
- Pipe Size1"
- StandardSAE J476
Construction
- MaterialStainless Steel
- PlatingPassivated
- ConfigurationConnector
- Weight1.40 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2404-LL
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-202114-16-16 | 2404-LL-16-16-SS |
| Parker (Triple-Lok / TFD) | 16 FFFTX-SS | 2404-LL-16-16-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
