JIC 37° Flare Fittings · 2406 family

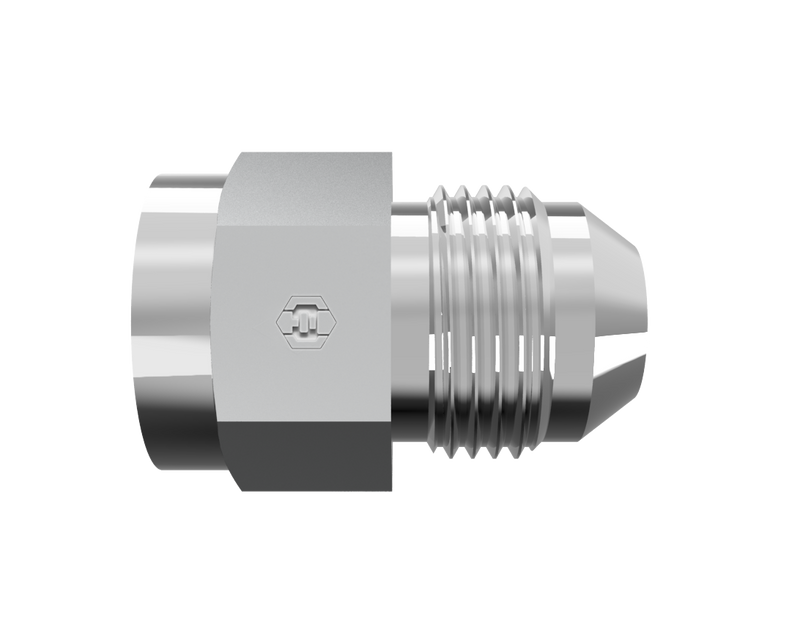

2406-12-06-B
3/4" Female JIC Swivel x 3/8" Male JIC · Reducer
$7.76
per pieceIn stock
- Side 1
- 3/4" Female JIC Swivel
- Side 2
- 3/8" Male JIC
- Material
- Brass
- Plating
- Natural Finish
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/4" Female JIC Swivel
Side 23/8" Male JIC
Thread Type1-1/16-12 UN
Tube OD3/4" × 3/8"
MaterialBrass
Plating / FinishNatural Finish
ConfigurationReducer
StandardSAE J514 / SAE J514
2406-12-06-B is a 3/4" Female JIC Swivel x 3/8" Male JIC in the 2406 Series. For connecting two 37° flared tubes or lines of different sizes in a straight configuration; the swivel end allows the joint to be tightened without twisting the line.
Specifications
| Part Number | 2406-12-06-B |
|---|---|
| Series | 2406 |
| Product Type | Reducer |
| Side 1 Connection | 3/4" Female JIC Swivel |
| Side 2 Connection | 3/8" Male JIC |
| Tube OD (Side 1 / Side 2) | 3/4" / 3/8" |
| Thread Type (Side 1) | 1-1/16-12 UN |
| Thread Type (Side 2) | 1-1/16-12 UN |
| Material | Brass |
| Finish / Plating | Natural Finish |
| Standard (Side 1) | SAE J514 - Class 2B Thread |
| Standard (Side 2) | SAE J514 - Class 2A Thread |
| Weight | 0.24 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/4" Female JIC Swivel
- Thread1-1/16-12 UN
- Tube OD3/4"
- StandardSAE J514 - Class 2B Thread
Side 2
3/8" Male JIC
- Thread1-1/16-12 UN
- Tube OD3/8"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialBrass
- PlatingNatural Finish
- ConfigurationReducer
- Weight0.24 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2406
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2215-12-6B | 2406-12-06-B |
| Parker (Triple-Lok / TFD) | 12-6 TRTXN-B | 2406-12-06-B |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
