JIC 37° Flare Fittings · 2501-L-FG family

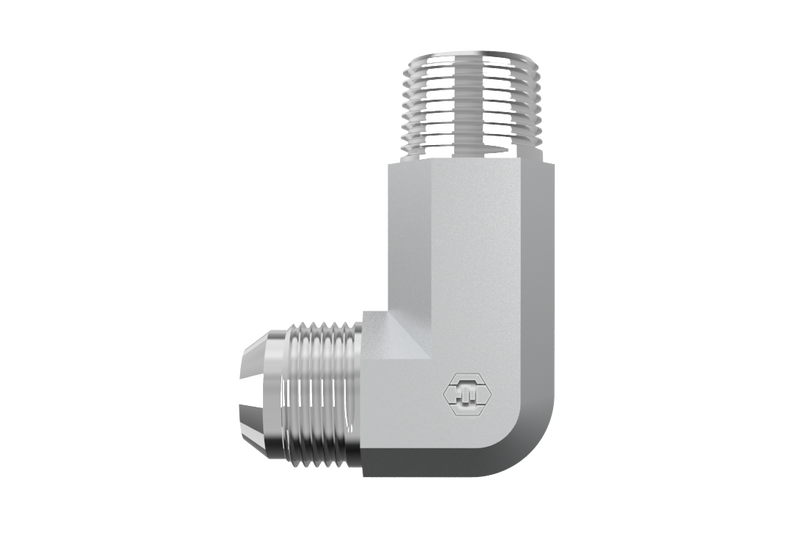

2501-L-06-06-SS
3/8" Male JIC x 3/8" Male NPTF 30° · Male Elbow
$110.21
per pieceIn stock
- Side 1
- 3/8" Male JIC
- Side 2
- 3/8" Male NPTF 30°
- Material
- Stainless Steel
- Plating
- Passivated
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/8" Male JIC
Side 23/8" Male NPTF 30°
Thread Type9/16-18 UNF
Tube OD3/8"
Pipe Size3/8"
MaterialStainless Steel
Plating / FinishPassivated
ConfigurationMale Elbow
StandardSAE J514 / SAE J476
2501-L-06-06-SS is a 3/8" Male JIC x 3/8" Male NPTF 30° in the 2501-L-FG Series. For connecting 37° flared tubes or lines to pipe at a 90° angle with an extended barrel for clearance applications.
Specifications
| Part Number | 2501-L-06-06-SS |
|---|---|
| Series | 2501-L-FG |
| Product Type | Male Elbow |
| Side 1 Connection | 3/8" Male JIC |
| Side 2 Connection | 3/8" Male NPTF 30° |
| Tube OD | 3/8" |
| Pipe Size (Side 2) | 3/8" |
| Thread Type (Side 1) | 9/16-18 UNF |
| Thread Type (Side 2) | 9/16-18 UNF |
| Material | Stainless Steel |
| Finish / Plating | Passivated |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J476 |
| Weight | 0.38 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/8" Male JIC
- Thread9/16-18 UNF
- Tube OD3/8"
- StandardSAE J514 - Class 2A Thread
Side 2
3/8" Male NPTF 30°
- Thread9/16-18 UNF
- Pipe Size3/8"
- StandardSAE J476
Construction
- MaterialStainless Steel
- PlatingPassivated
- ConfigurationMale Elbow
- Weight0.38 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2501-L-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-202411-6-6 | 2501-L-06-06-SS |
| Parker (Triple-Lok / TFD) | 6-6 CCTX-SS | 2501-L-06-06-SS |
| Sae | SAE J514 6-6 071502S | 2501-L-06-06-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
