JIC 37° Flare Fittings · 2501-L-FG family

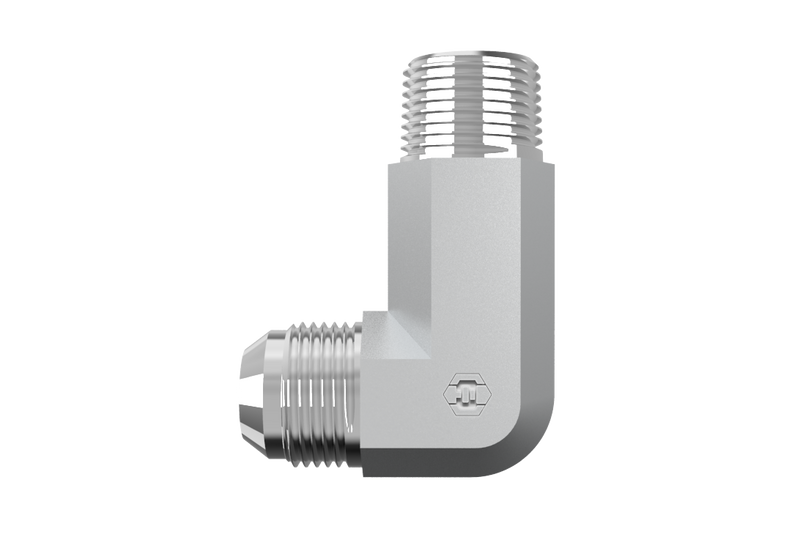

2501-L-08-08-SS
1/2" Male JIC x 1/2" Male NPTF 30° · Male Elbow
$67.06
per pieceIn stock
- Side 1
- 1/2" Male JIC
- Side 2
- 1/2" Male NPTF 30°
- Material
- Stainless Steel
- Plating
- Passivated
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/2" Male JIC
Side 21/2" Male NPTF 30°
Thread Type3/4-16 UNF
Tube OD1/2"
Pipe Size1/2"
MaterialStainless Steel
Plating / FinishPassivated
ConfigurationMale Elbow
StandardSAE J514 / SAE J476
2501-L-08-08-SS is a 1/2" Male JIC x 1/2" Male NPTF 30° in the 2501-L-FG Series. For connecting 37° flared tubes or lines to pipe at a 90° angle with an extended barrel for clearance applications.
Specifications
| Part Number | 2501-L-08-08-SS |
|---|---|
| Series | 2501-L-FG |
| Product Type | Male Elbow |
| Side 1 Connection | 1/2" Male JIC |
| Side 2 Connection | 1/2" Male NPTF 30° |
| Tube OD | 1/2" |
| Pipe Size (Side 2) | 1/2" |
| Thread Type (Side 1) | 3/4-16 UNF |
| Thread Type (Side 2) | 3/4-16 UNF |
| Material | Stainless Steel |
| Finish / Plating | Passivated |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J476 |
| Weight | 0.37 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/2" Male JIC
- Thread3/4-16 UNF
- Tube OD1/2"
- StandardSAE J514 - Class 2A Thread
Side 2
1/2" Male NPTF 30°
- Thread3/4-16 UNF
- Pipe Size1/2"
- StandardSAE J476
Construction
- MaterialStainless Steel
- PlatingPassivated
- ConfigurationMale Elbow
- Weight0.37 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2501-L-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-202411-8-8 | 2501-L-08-08-SS |
| Parker (Triple-Lok / TFD) | 8-8 CCTX-SS | 2501-L-08-08-SS |
| Sae | SAE J514 8-8 071502S | 2501-L-08-08-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
