JIC 37° Flare Fittings · 2502-FG family

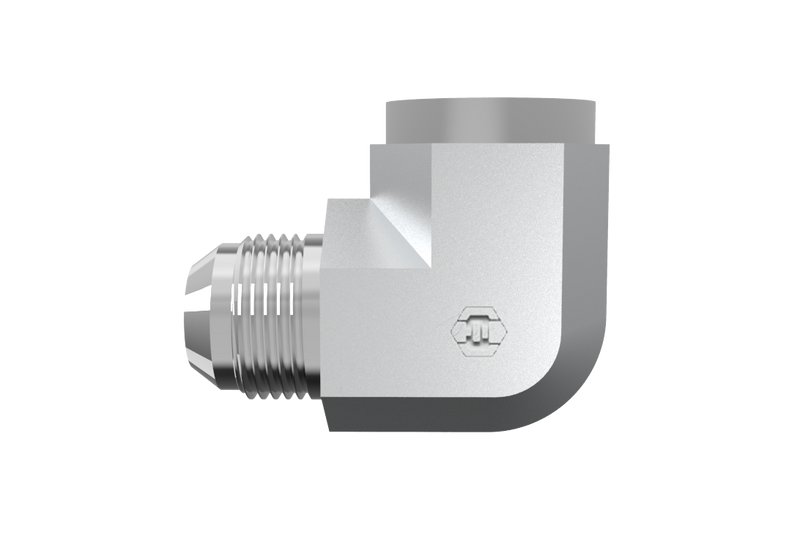

2502-32-32-SS
2" Male JIC x 2" Female NPTF 30° · Female Elbow
$556.43
per pieceIn stock
- Side 1
- 2" Male JIC
- Side 2
- 2" Female NPTF 30°
- Material
- Stainless Steel
- Plating
- Passivated
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12" Male JIC
Side 22" Female NPTF 30°
Thread Type2-1/2-12 UN
Tube OD2"
Pipe Size2"
MaterialStainless Steel
Plating / FinishPassivated
ConfigurationFemale Elbow
StandardSAE J514 / SAE J476
2502-32-32-SS is a 2" Male JIC x 2" Female NPTF 30° in the 2502-FG Series. For connecting 37° flared tubes or lines to a male pipe thread at a 90° angle.
Specifications
| Part Number | 2502-32-32-SS |
|---|---|
| Series | 2502-FG |
| Product Type | Female Elbow |
| Side 1 Connection | 2" Male JIC |
| Side 2 Connection | 2" Female NPTF 30° |
| Tube OD | 2" |
| Pipe Size (Side 2) | 2" |
| Thread Type (Side 1) | 2-1/2-12 UN |
| Thread Type (Side 2) | 2-1/2-12 UN |
| Material | Stainless Steel |
| Finish / Plating | Passivated |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J476 |
| Weight | 5.03 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2" Male JIC
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J514 - Class 2A Thread
Side 2
2" Female NPTF 30°
- Thread2-1/2-12 UN
- Pipe Size2"
- StandardSAE J476
Construction
- MaterialStainless Steel
- PlatingPassivated
- ConfigurationFemale Elbow
- Weight5.03 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2502-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2025-32-32 | 2502-32-32-SS |
| Parker (Triple-Lok / TFD) | 32 DTX-SS | 2502-32-32-SS |
| Sae | SAE J514 32-32 070203S | 2502-32-32-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
