JIC 37° Flare Fittings · 2700 family
2700-32-32-SS
2" Male JIC Bulkhead x 2" Male JIC · Bulkhead
$980.81
per pieceIn stock
- Side 1
- 2" Male JIC Bulkhead
- Side 2
- 2" Male JIC
- Material
- Stainless Steel
- Thread
- 2-1/2-12 UN
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 12" Male JIC Bulkhead
Side 22" Male JIC
Thread Type2-1/2-12 UN
Tube OD2"
MaterialStainless Steel
ConfigurationBulkhead
StandardSAE J514

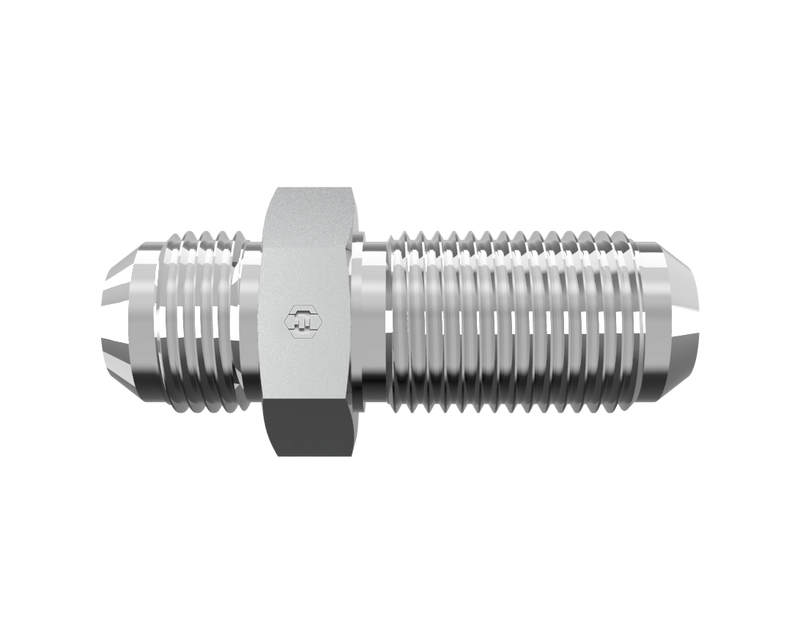

2700-32-32-SS is a 2" Male JIC Bulkhead x 2" Male JIC in the 2700 Series. 2700 carries a male JIC 37° flare tube end through a panel to a second male JIC end as a bulkhead union, with a threaded barrel for the mounting nut.
Specifications
| Part Number | 2700-32-32-SS |
|---|---|
| Series | 2700 |
| Product Type | Bulkhead |
| Side 1 Connection | 2" Male JIC Bulkhead |
| Side 2 Connection | 2" Male JIC |
| Tube OD (Side 1) | 2" |
| Thread Type (Side 1) | 2-1/2-12 UN |
| Thread Type (Side 2) | 2-1/2-12 UN |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 2.80 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
2" Male JIC Bulkhead
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J514 - Class 2A Thread
Side 2
2" Male JIC
- Thread2-1/2-12 UN
- Tube OD2"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialStainless Steel
- ConfigurationBulkhead
- Weight2.80 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2700
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2041-1-32-32 | 2700-32-32-SS |
| Parker (Triple-Lok / TFD) | 32 WTX-SS | 2700-32-32-SS |
| Sae | SAE J514 32-32 070601S | 2700-32-32-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
