2701-02-02-FG
1/8" Male JIC Bulkhead x 1/8" Male JIC · Bulkhead Elbow
$11.45
per pieceIn stock
- Side 1
- 1/8" Male JIC Bulkhead
- Side 2
- 1/8" Male JIC
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11/8" Male JIC Bulkhead
Side 21/8" Male JIC
Thread Type5/16-24 UNF
Tube OD1/8"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationBulkhead Elbow
StandardSAE J514

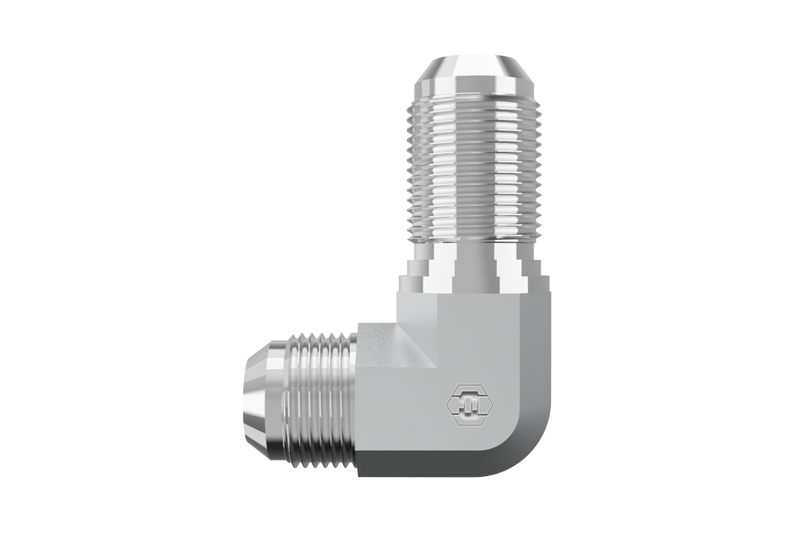

2701-02-02-FG is a 1/8" Male JIC Bulkhead x 1/8" Male JIC in the 2701-FG Series. 2701-FG bends a male JIC 37° flare tube end through 90 degrees to a second male JIC end, mounting as a bulkhead elbow in a forged one-piece body.
Specifications
| Part Number | 2701-02-02-FG |
|---|---|
| Series | 2701-FG |
| Product Type | Bulkhead Elbow |
| Side 1 Connection | 1/8" Male JIC Bulkhead |
| Side 2 Connection | 1/8" Male JIC |
| Tube OD (Side 1) | 1/8" |
| Thread Type (Side 1) | 5/16-24 UNF |
| Thread Type (Side 2) | 5/16-24 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.06 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1/8" Male JIC Bulkhead
- Thread5/16-24 UNF
- Tube OD1/8"
- StandardSAE J514 - Class 2A Thread
Side 2
1/8" Male JIC
- Thread5/16-24 UNF
- Tube OD1/8"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationBulkhead Elbow
- Weight0.06 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2701-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2043-1-2-2S | 2701-02-02-FG |
| Parker (Triple-Lok / TFD) | 2 WETX-S | 2701-02-02-FG |
| Sae | SAE J514 2-2 070701C | 2701-02-02-FG |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
