2701-05-05-FG
5/16" Male JIC Bulkhead x 5/16" Male JIC · Bulkhead Elbow
$12.92
per pieceIn stock
- Side 1
- 5/16" Male JIC Bulkhead
- Side 2
- 5/16" Male JIC
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 15/16" Male JIC Bulkhead
Side 25/16" Male JIC
Thread Type1/2-20 UNF
Tube OD5/16"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationBulkhead Elbow
StandardSAE J514

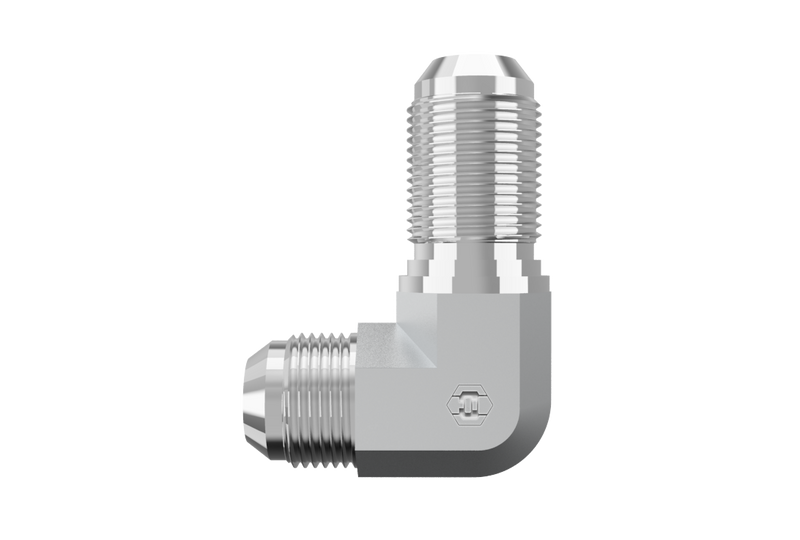

2701-05-05-FG is a 5/16" Male JIC Bulkhead x 5/16" Male JIC in the 2701-FG Series. 2701-FG bends a male JIC 37° flare tube end through 90 degrees to a second male JIC end, mounting as a bulkhead elbow in a forged one-piece body.
Specifications
| Part Number | 2701-05-05-FG |
|---|---|
| Series | 2701-FG |
| Product Type | Bulkhead Elbow |
| Side 1 Connection | 5/16" Male JIC Bulkhead |
| Side 2 Connection | 5/16" Male JIC |
| Tube OD (Side 1) | 5/16" |
| Thread Type (Side 1) | 1/2-20 UNF |
| Thread Type (Side 2) | 1/2-20 UNF |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Weight | 0.12 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
5/16" Male JIC Bulkhead
- Thread1/2-20 UNF
- Tube OD5/16"
- StandardSAE J514 - Class 2A Thread
Side 2
5/16" Male JIC
- Thread1/2-20 UNF
- Tube OD5/16"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationBulkhead Elbow
- Weight0.12 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2701-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2043-1-5-5S | 2701-05-05-FG |
| Parker (Triple-Lok / TFD) | 5 WETX-S | 2701-05-05-FG |
| Sae | SAE J514 5-5 070701C | 2701-05-05-FG |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
