JIC 37° Flare Fittings · 2705 family

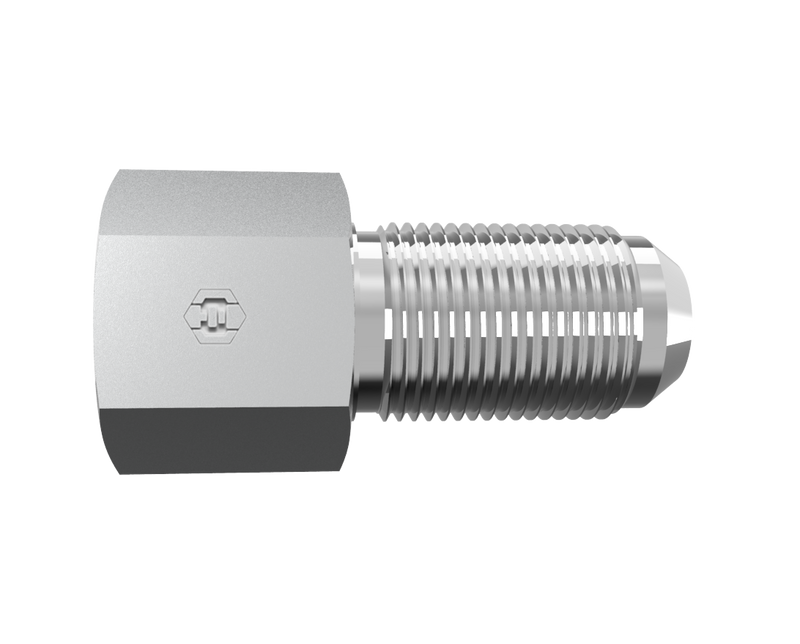

2705-20-20-SS
1-1/4" Female NPTF 30° x 1-1/4" Male JIC · Female Bulkhead
$157.91
per pieceIn stock
- Side 1
- 1-1/4" Female NPTF 30°
- Side 2
- 1-1/4" Male JIC
- Material
- Stainless Steel
- Plating
- Passivated
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 11-1/4" Female NPTF 30°
Side 21-1/4" Male JIC
Thread Type1-1/4-11-1/2 NPTF
Pipe Size1-1/4"
MaterialStainless Steel
Plating / FinishPassivated
ConfigurationFemale Bulkhead
StandardSAE J476 / SAE J514
2705-20-20-SS is a 1-1/4" Female NPTF 30° x 1-1/4" Male JIC in the 2705 Series. For connecting a male pipe thread through a panel or wall to a 37° flared tube or line in a straight configuration.
Specifications
| Part Number | 2705-20-20-SS |
|---|---|
| Series | 2705 |
| Product Type | Female Bulkhead |
| Side 1 Connection | 1-1/4" Female NPTF 30° |
| Side 2 Connection | 1-1/4" Male JIC |
| Pipe Size (Side 1) | 1-1/4" |
| Thread Type (Side 1) | 1-1/4-11-1/2 NPTF |
| Thread Type (Side 2) | 1-1/4-11-1/2 NPTF |
| Material | Stainless Steel |
| Finish / Plating | Passivated |
| Standard (Side 1) | SAE J476 |
| Standard (Side 2) | SAE J514 - Class 2A Thread |
| Weight | 1.24 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
1-1/4" Female NPTF 30°
- Thread1-1/4-11-1/2 NPTF
- Pipe Size1-1/4"
- StandardSAE J476
Side 2
1-1/4" Male JIC
- Thread1-1/4-11-1/2 NPTF
- Tube OD1-1/4"
- StandardSAE J514 - Class 2A Thread
Construction
- MaterialStainless Steel
- PlatingPassivated
- ConfigurationFemale Bulkhead
- Weight1.24 lb
Product Family
CategoryJIC 37° Flare Fittings
Family2705
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2239-1-20-20 | 2705-20-20-SS |
| Parker (Triple-Lok / TFD) | 20 WGTX-SS | 2705-20-20-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
