JIC 37° Flare Fittings · 6402-O family

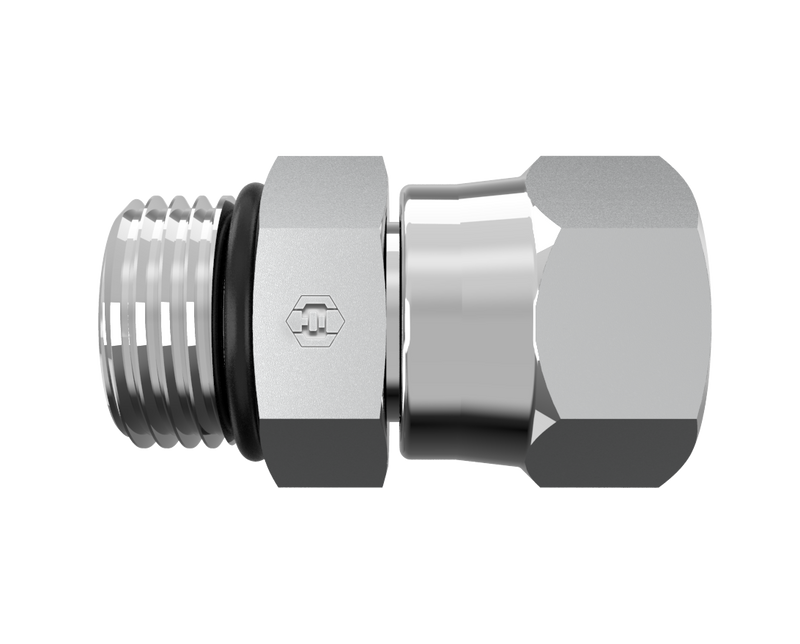

6402-04-04-O-SS
7/16-20 Male ORB x 1/4" Female JIC Swivel · Swivel Connector
$42.02
per pieceIn stock
- Side 1
- 7/16-20 Male ORB
- Side 2
- 1/4" Female JIC Swivel
- Material
- Stainless Steel
- Thread
- 7/16-20 UNF
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 17/16-20 Male ORB
Side 21/4" Female JIC Swivel
Thread Type7/16-20 UNF
MaterialStainless Steel
ConfigurationSwivel Connector
StandardSAE J1926 / SAE J514
6402-04-04-O-SS is a 7/16-20 Male ORB x 1/4" Female JIC Swivel in the 6402-O Series. For connecting SAE port to JIC lines using a swivel for alignment.
Specifications
| Part Number | 6402-04-04-O-SS |
|---|---|
| Series | 6402-O |
| Product Type | Swivel Connector |
| Side 1 Connection | 7/16-20 Male ORB |
| Side 2 Connection | 1/4" Female JIC Swivel |
| Thread Type (Side 1) | 7/16-20 UNF |
| Thread Type (Side 2) | 7/16-20 UNF |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J1926 |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 0.06 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
7/16-20 Male ORB
- Thread7/16-20 UNF
- StandardSAE J1926
Side 2
1/4" Female JIC Swivel
- Thread7/16-20 UNF
- Tube OD1/4"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialStainless Steel
- ConfigurationSwivel Connector
- Weight0.06 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6402-O
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2266-4-4 | 6402-04-04-O-SS |
| Parker (Triple-Lok / TFD) | 4 F65OX-SS | 6402-04-04-O-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
