JIC 37° Flare Fittings · 6500-FG family
6500-03-03-SS
3/16" Male JIC x 3/16" Female JIC Swivel · Swivel Elbow
$87.19
per pieceIn stock
- Side 1
- 3/16" Male JIC
- Side 2
- 3/16" Female JIC Swivel
- Material
- Stainless Steel
- Thread
- 3/8-24 UNF
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/16" Male JIC
Side 23/16" Female JIC Swivel
Thread Type3/8-24 UNF
Tube OD3/16"
MaterialStainless Steel
ConfigurationSwivel Elbow
StandardSAE J514 / SAE J514

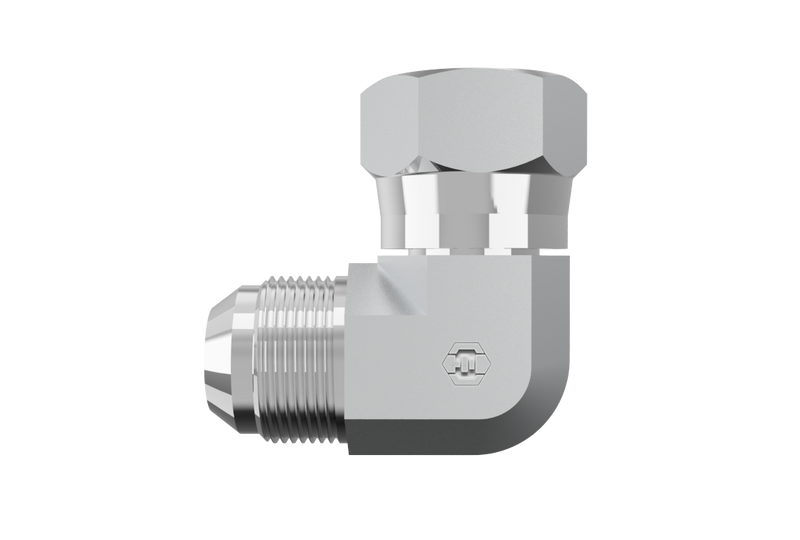

6500-03-03-SS is a 3/16" Male JIC x 3/16" Female JIC Swivel in the 6500-FG Series. 6500-FG turns a male JIC 37° flare tube end 90 degrees into a female JIC 37° swivel end, forged in one piece so the elbow tightens without winding the line.
Specifications
| Part Number | 6500-03-03-SS |
|---|---|
| Series | 6500-FG |
| Product Type | Swivel Elbow |
| Side 1 Connection | 3/16" Male JIC |
| Side 2 Connection | 3/16" Female JIC Swivel |
| Tube OD (Side 1) | 3/16" |
| Thread Type (Side 1) | 3/8-24 UNF |
| Thread Type (Side 2) | 3/8-24 UNF |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J514 - Class 2A Thread |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 0.06 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/16" Male JIC
- Thread3/8-24 UNF
- Tube OD3/16"
- StandardSAE J514 - Class 2A Thread
Side 2
3/16" Female JIC Swivel
- Thread3/8-24 UNF
- Tube OD3/16"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialStainless Steel
- ConfigurationSwivel Elbow
- Weight0.06 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6500-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2071-3-3 | 6500-03-03-SS |
| Parker (Triple-Lok / TFD) | 3 C6X-SS | 6500-03-03-SS |
| Sae | SAE J514 3-3 070221S | 6500-03-03-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
