JIC 37° Flare Fittings · 6501-FG family

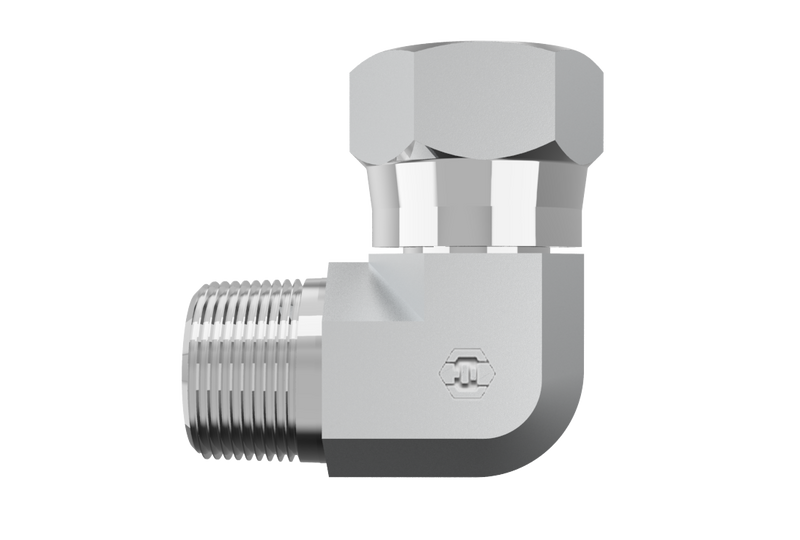

6501-06-04-SS
3/8" Male NPTF 30° x 1/4" Female JIC Swivel · Swivel Elbow
$44.44
per pieceIn stock
- Side 1
- 3/8" Male NPTF 30°
- Side 2
- 1/4" Female JIC Swivel
- Material
- Stainless Steel
- Thread
- 3/8-18 NPTF
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 13/8" Male NPTF 30°
Side 21/4" Female JIC Swivel
Thread Type3/8-18 NPTF
Pipe Size3/8"
MaterialStainless Steel
ConfigurationSwivel Elbow
StandardSAE J476 / SAE J514
6501-06-04-SS is a 3/8" Male NPTF 30° x 1/4" Female JIC Swivel in the 6501-FG Series. For connecting a pipe-threaded port to a 37° flared tube or line at a 90° angle, with the female swivel end allowing the elbow to be tightened without.
Specifications
| Part Number | 6501-06-04-SS |
|---|---|
| Series | 6501-FG |
| Product Type | Swivel Elbow |
| Side 1 Connection | 3/8" Male NPTF 30° |
| Side 2 Connection | 1/4" Female JIC Swivel |
| Pipe Size (Side 1) | 3/8" |
| Thread Type (Side 1) | 3/8-18 NPTF |
| Thread Type (Side 2) | 3/8-18 NPTF |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J476 |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 0.18 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
3/8" Male NPTF 30°
- Thread3/8-18 NPTF
- Pipe Size3/8"
- StandardSAE J476
Side 2
1/4" Female JIC Swivel
- Thread3/8-18 NPTF
- Tube OD1/4"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialStainless Steel
- ConfigurationSwivel Elbow
- Weight0.18 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6501-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2250-6-4 | 6501-06-04-SS |
| Parker (Triple-Lok / TFD) | 4-6 X6EF-SS | 6501-06-04-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
