JIC 37° Flare Fittings · 6502-FG family

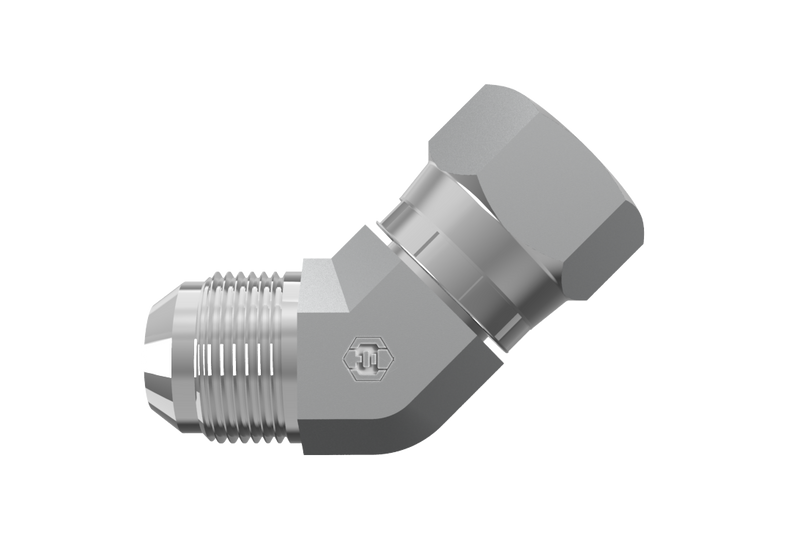

6502-10-10-SS
5/8" Male NPTF 30° x 5/8" Female JIC Swivel · Swivel Elbow
$47.40
per pieceIn stock
- Side 1
- 5/8" Male NPTF 30°
- Side 2
- 5/8" Female JIC Swivel
- Material
- Stainless Steel
- Thread
- 7/8-14 UNF
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 15/8" Male NPTF 30°
Side 25/8" Female JIC Swivel
Thread Type7/8-14 UNF
Pipe Size5/8"
MaterialStainless Steel
ConfigurationSwivel Elbow
StandardSAE J476 / SAE J514
6502-10-10-SS is a 5/8" Male NPTF 30° x 5/8" Female JIC Swivel in the 6502-FG Series. For connecting a pipe-threaded port to a 37° flared tube or line at a 45° angle, with the female swivel end allowing the elbow to be tightened without.
Specifications
| Part Number | 6502-10-10-SS |
|---|---|
| Series | 6502-FG |
| Product Type | Swivel Elbow |
| Side 1 Connection | 5/8" Male NPTF 30° |
| Side 2 Connection | 5/8" Female JIC Swivel |
| Pipe Size (Side 1) | 5/8" |
| Thread Type (Side 1) | 7/8-14 UNF |
| Thread Type (Side 2) | 7/8-14 UNF |
| Material | Stainless Steel |
| Standard (Side 1) | SAE J476 |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 0.28 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
5/8" Male NPTF 30°
- Thread7/8-14 UNF
- Pipe Size5/8"
- StandardSAE J476
Side 2
5/8" Female JIC Swivel
- Thread7/8-14 UNF
- Tube OD5/8"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialStainless Steel
- ConfigurationSwivel Elbow
- Weight0.28 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6502-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 259-2070-10-10 | 6502-10-10-SS |
| Parker (Triple-Lok / TFD) | 10 V6X-SS | 6502-10-10-SS |
| Sae | SAE J514 10-10 070321S | 6502-10-10-SS |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
