JIC 37° Flare Fittings · 6502-FG family

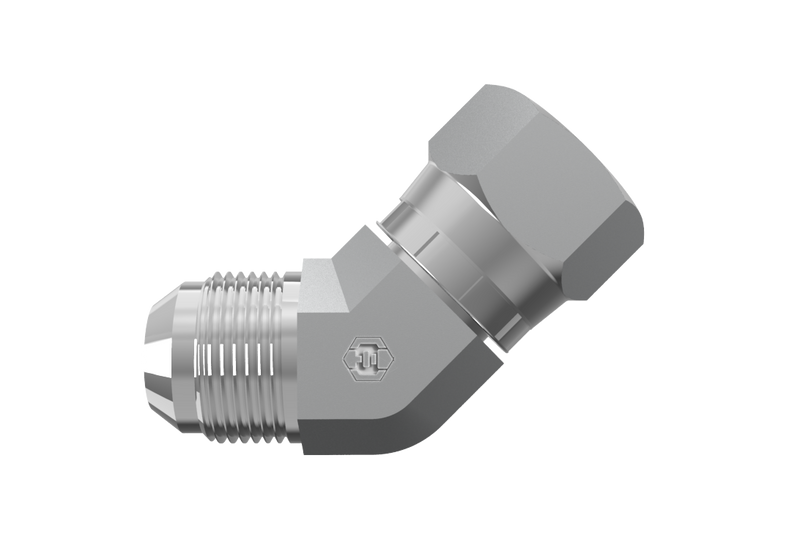

6502-14-14-FG
7/8" Male NPTF 30° x 7/8" Female JIC Swivel · Swivel Elbow
$25.51
per pieceIn stock
- Side 1
- 7/8" Male NPTF 30°
- Side 2
- 7/8" Female JIC Swivel
- Material
- Steel
- Plating
- Trivalent Zinc
Buying 50 pieces or more? Contact us for bulk pricing. Custom or modified parts: contact us.
Side 17/8" Male NPTF 30°
Side 27/8" Female JIC Swivel
Thread Type1-3/16-12 UN
Pipe Size7/8"
MaterialSteel
Plating / FinishTrivalent Zinc
ConfigurationSwivel Elbow
StandardSAE J476 / SAE J514
6502-14-14-FG is a 7/8" Male NPTF 30° x 7/8" Female JIC Swivel in the 6502-FG Series. For connecting a pipe-threaded port to a 37° flared tube or line at a 45° angle, with the female swivel end allowing the elbow to be tightened without.
Specifications
| Part Number | 6502-14-14-FG |
|---|---|
| Series | 6502-FG |
| Product Type | Swivel Elbow |
| Side 1 Connection | 7/8" Male NPTF 30° |
| Side 2 Connection | 7/8" Female JIC Swivel |
| Pipe Size (Side 1) | 7/8" |
| Thread Type (Side 1) | 1-3/16-12 UN |
| Thread Type (Side 2) | 1-3/16-12 UN |
| Material | Steel |
| Finish / Plating | Trivalent Zinc |
| Standard (Side 1) | SAE J476 |
| Standard (Side 2) | SAE J514 - Class 2B Thread |
| Weight | 0.66 lb |
| Category | JIC 37° Flare Fittings |
| Stock Status | In stock |
Connection Details
Side 1
7/8" Male NPTF 30°
- Thread1-3/16-12 UN
- Pipe Size7/8"
- StandardSAE J476
Side 2
7/8" Female JIC Swivel
- Thread1-3/16-12 UN
- Tube OD7/8"
- StandardSAE J514 - Class 2B Thread
Construction
- MaterialSteel
- PlatingTrivalent Zinc
- ConfigurationSwivel Elbow
- Weight0.66 lb
Product Family
CategoryJIC 37° Flare Fittings
Family6502-FG
Cross Reference
| Brand | Part Number | Higher Fitting Equivalent |
|---|---|---|
| Aeroquip | 2070-14-14S | 6502-14-14-FG |
| Parker (Triple-Lok / TFD) | 14 V6X-S | 6502-14-14-FG |
| Sae | SAE J514 14-14 070321C | 6502-14-14-FG |
Cross-references are dimensional equivalents. Verify thread and pressure rating for the application. See the cross-reference resource for other brands.
